GDC2-63 AC MCB Overview

Şu GDC2-63 AC MCB is a compact miniature circuit breaker designed for overload and short-circuit protection in low-voltage AC electrical systems. With rated currents from 1A to 63A, a rated breaking capacity of 6kA, and multiple pole configurations, the series can be used in residential distribution boards, commercial electrical panels, industrial control cabinets and OEM equipment.

Şu GDC2-63 AC MCB is available in 1P, 2P, 3P and 4P versions, allowing the same product family to cover both single-phase and three-phase protection requirements. Rated voltage reaches 240/415V AC, with a frequency of 50/60Hz.

Three thermo-magnetic trip characteristics are available:

• B Curve
• C Curve
• D Curve

These trip curves allow the GDC2-63 series to be matched to different load conditions. B curve models are suitable for circuits with lower inrush current, C curve models are commonly used for general distribution and equipment circuits, while D curve versions can be selected for loads with higher starting currents.

Compared with the GDC1-63 series, the GDC2-63 AC MCB provides a higher 6kA breaking capacity, making it suitable for installations where a greater short-circuit interruption capability is required.

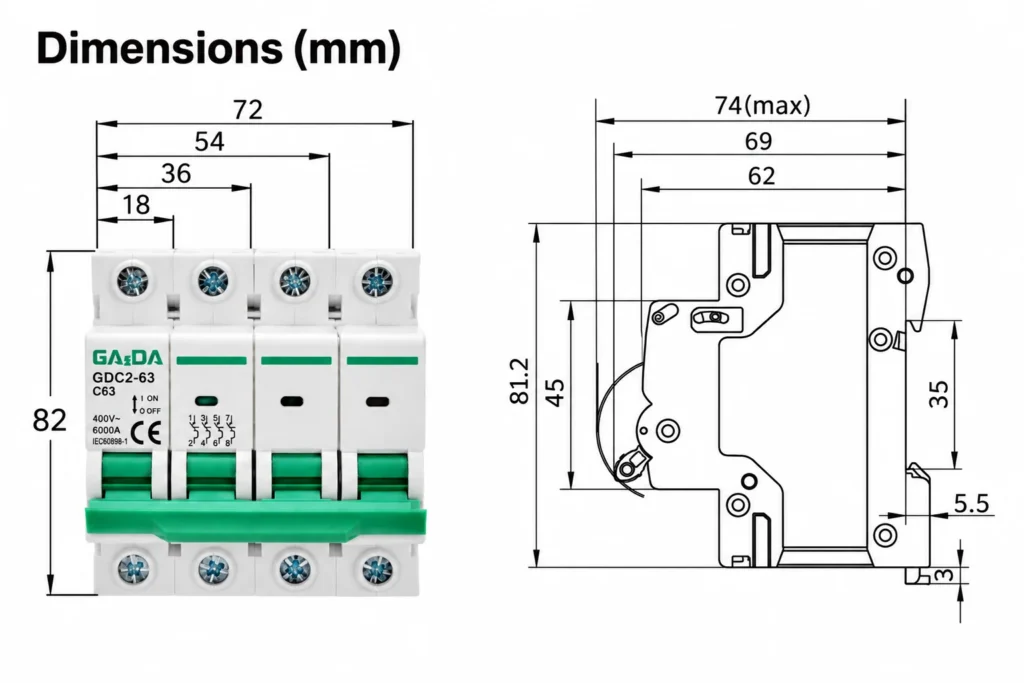

The breaker is designed for standard 35mm DIN rail mounting, making installation and replacement straightforward inside modular electrical panels.

Ürün Özellikleri

Şu GDC2-63 AC MCB provides a rated short-circuit breaking capacity of 6000A.

This higher breaking capability makes the series suitable for residential, commercial and industrial distribution systems where prospective fault current may exceed the capability of a standard 4.5kA MCB.

Available current ratings include:

1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A.

This wide selection allows the GDC2-63 AC MCB to protect different branch circuits, loads and electrical equipment.

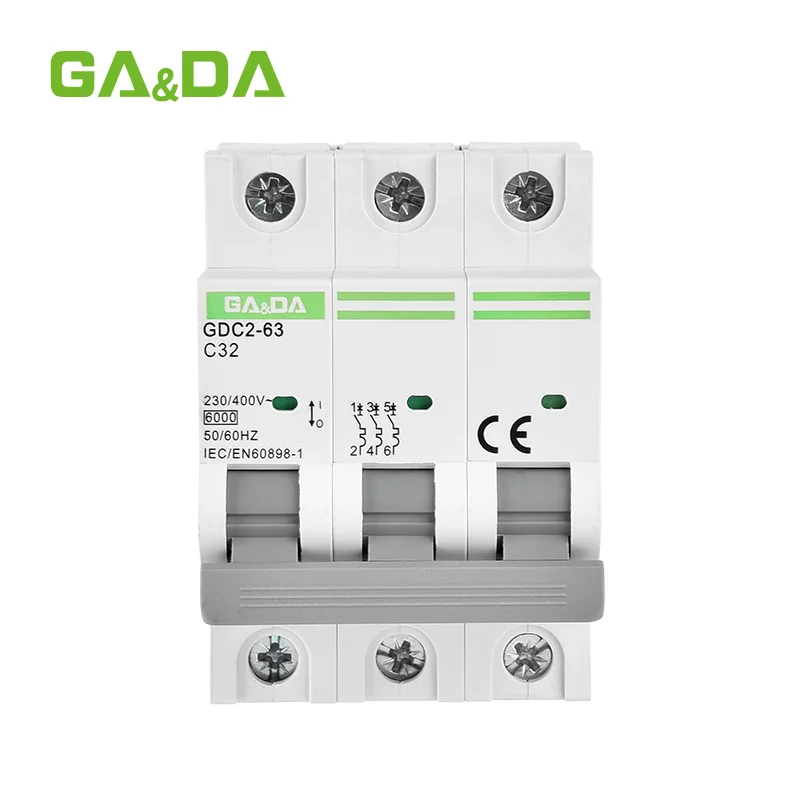

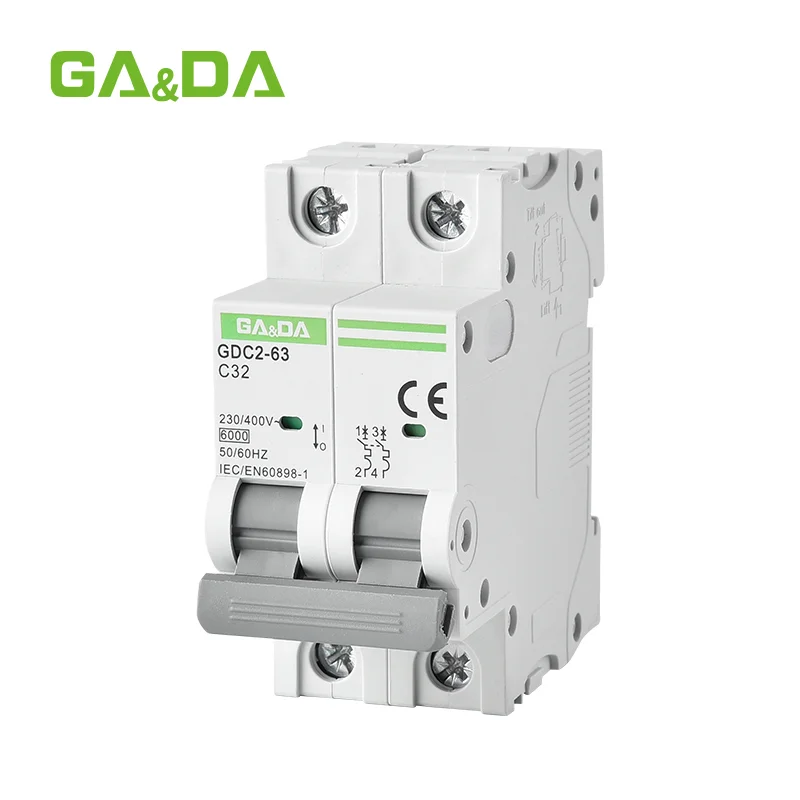

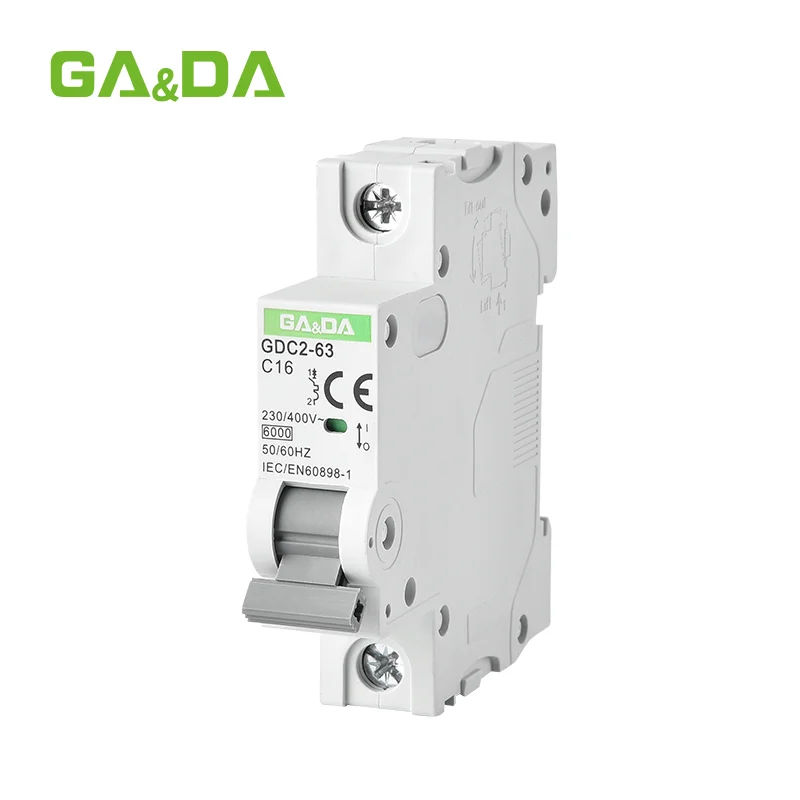

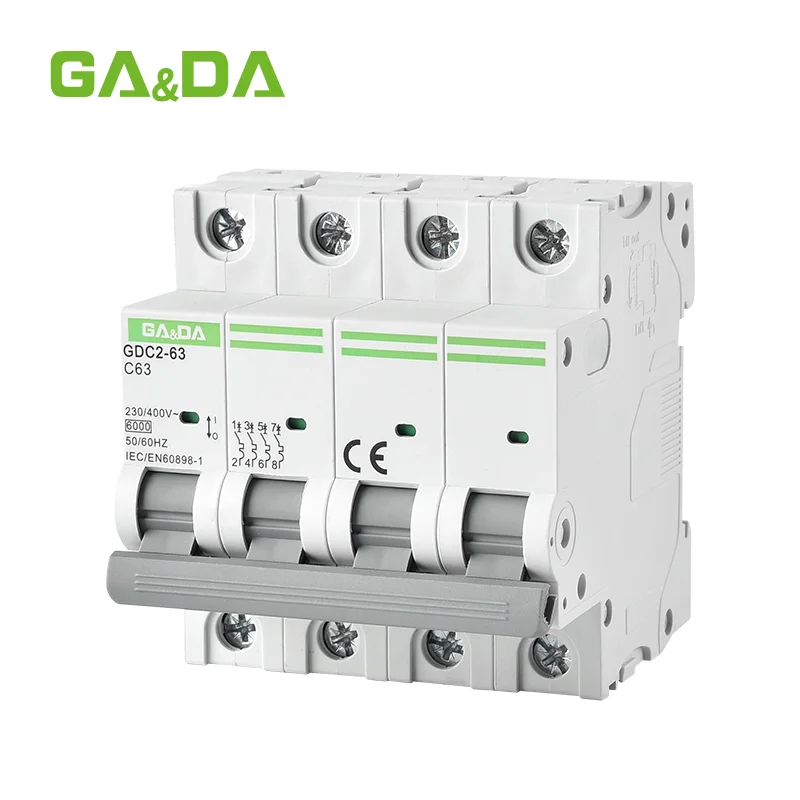

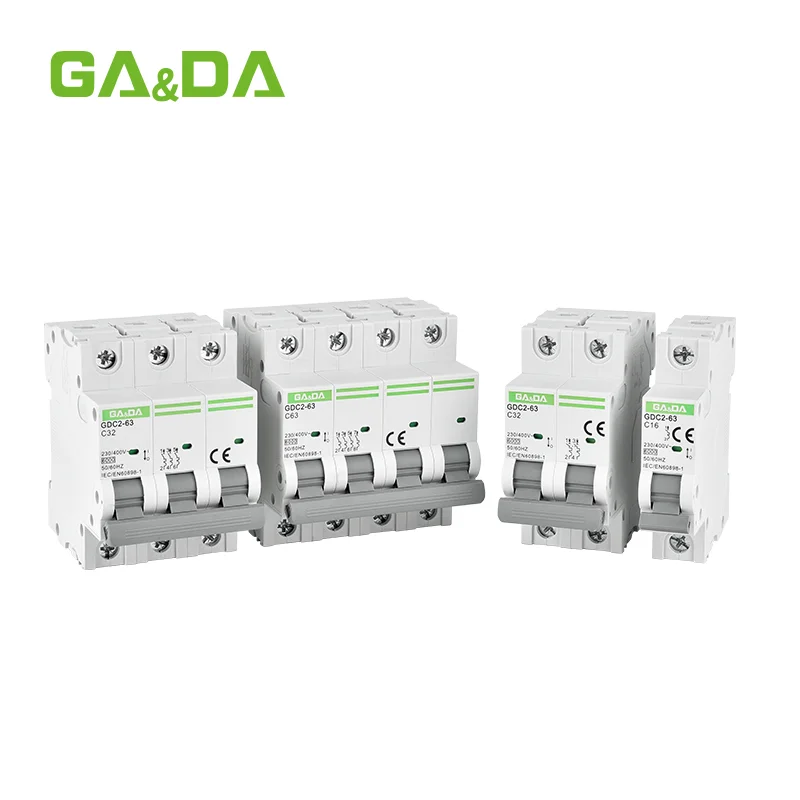

The GDC2-63 series is available in:

• 1P
• 2P
• 3P
• 4P

Multiple pole options simplify product selection for different single-phase and three-phase installations.The GDC2-63 AC MCB supports B, C and D thermo-magnetic characteristics, making the series adaptable to different load profiles and inrush-current requirements.A built-in contact position indicator provides a clear visual reference of breaker status, helping technicians during inspection and maintenance.The breaker is designed for mounting on a standard 35 mm DIN rayı, supporting compact installation in modular distribution and control equipment.

Teknik Özellikler

Applications of GDC2-63 AC MCB

Şu GDC2-63 AC MCB is suitable for a wide range of low-voltage electrical protection applications, including:

• Residential distribution boards
• Commercial electrical panels
• Endüstriyel kontrol dolapları
• Lighting circuits
• Power distribution systems
• Machinery control circuits
• HVAC electrical equipment
• Building electrical installations
• OEM elektrikli montaj grupları
• Small motor and equipment circuits

The combination of a 6kA breaking capacity, multiple pole options and B/C/D trip characteristics makes the GDC2-63 suitable for both general-purpose and more demanding AC protection applications.

Selecting a GDC2-63 AC MCB

When selecting a GDC2-63 AC MCB, engineers should consider more than the rated current.

Important selection factors include:

• Load current
• Cable capacity
• Sistem gerilimi
• Number of poles
• Prospective short-circuit current
• Required trip curve
• Upstream and downstream protection coordination

For standard distribution circuits, C curve is commonly used. B curve may be preferred for lower-inrush loads, while D curve can be selected where equipment produces higher starting currents.

The selected GDC2-63 breaker should always match the conductor capacity and electrical characteristics of the protected circuit.

Why Choose GA&DA GDC2-63 AC MCB?

Şu GDC2-63 AC MCB combines a broad current range with a higher 6kA breaking capacity in a compact DIN rail design.

Başlıca avantajları şunlardır:

• 1A–63A current range
• 6kA breaking capacity
• 1P / 2P / 3P / 4P configurations
• B / C / D trip curves
• 240V / 415V AC applications
• IEC/EN 60898-1 standard
• Contact position indicator
• 35mm DIN rail mounting
• Up to 25mm² terminal capacity
• Suitable for residential and industrial applications
• Suitable for distributors and OEM manufacturers
• Bulk and project purchasing support

For wholesalers, panel builders and electrical equipment manufacturers, the GDC2-63 provides a flexible MCB platform that can cover a wide range of protection requirements with one consistent product family.
