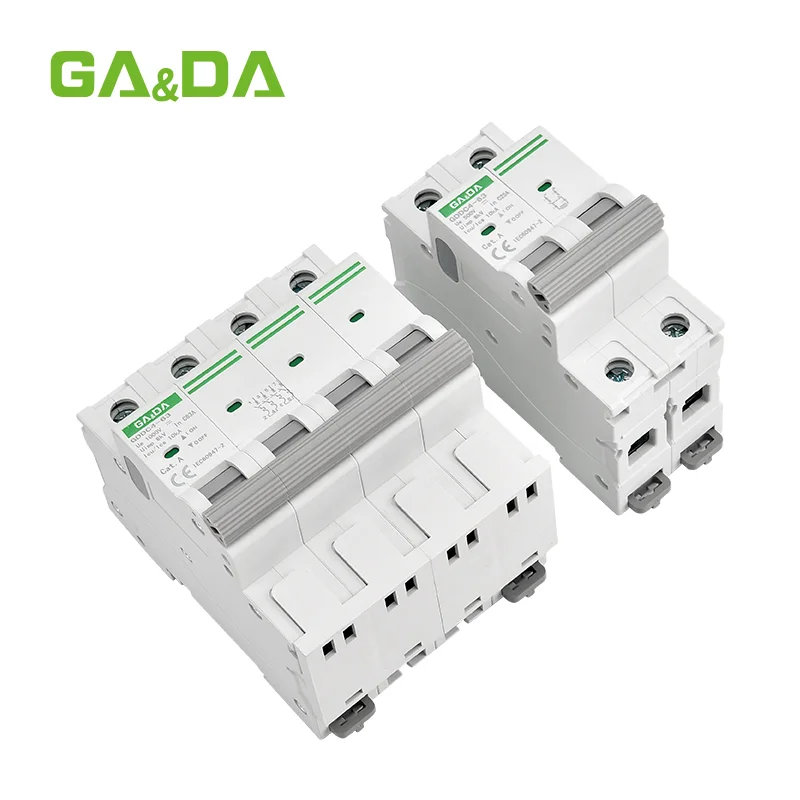

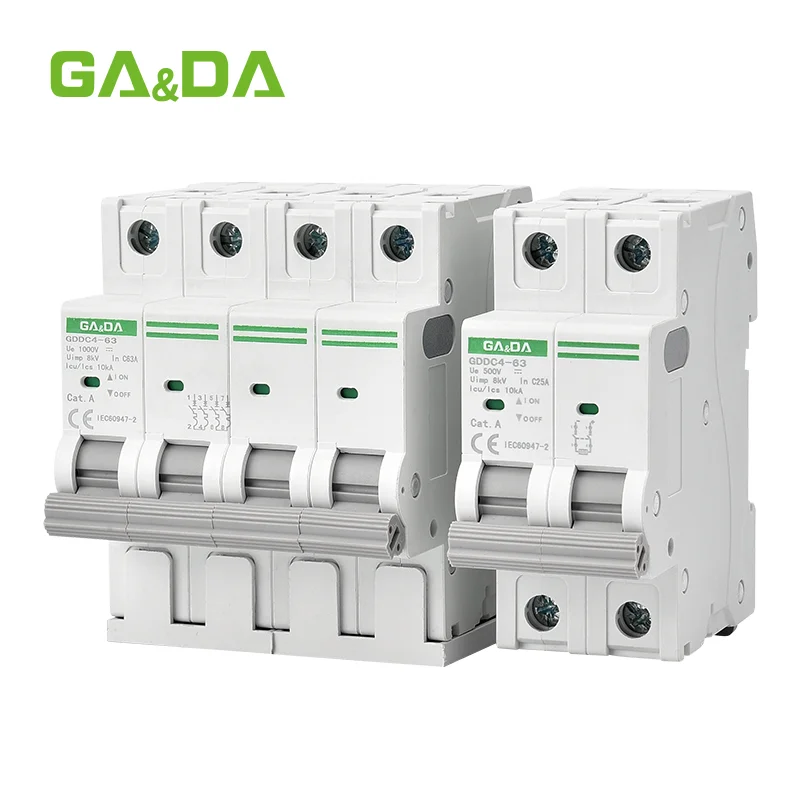

GDDC4-63 DC MCB Overview
Şu GDDC4-63 DC MCB is a high-performance nonpolarity DC miniature circuit breaker developed for overload and short-circuit protection in photovoltaic, energy storage and other low-voltage DC systems. With rated currents from 10A to 63A and system voltage configurations extending up to 1000V DC, it provides a flexible protection solution for modern DC distribution equipment.
A key advantage of the GDDC4-63 DC MCB is its nonpolarity design. Conventional polarized DC circuit breakers require careful attention to positive and negative terminal orientation. The nonpolarity structure provides greater wiring flexibility during panel assembly and field installation, which is particularly useful in photovoltaic and energy-storage applications.
The series supports 1P, 2P, 3P and 4P configurations, corresponding to different DC voltage levels. Standard configurations include 1P 250V DC, 2P 500V DC, 3P 750V DC and 4P 1000V DC.
With a rated breaking capacity of 6000A / 10000A, the GDDC4-63 DC MCB is positioned above lower-breaking-capacity models for applications requiring stronger fault-current interruption performance. It complies with IEC/EN60947-2 and supports B, C and D thermo-magnetic trip characteristics.
Ürün Özellikleri
Nonpolarity DC Design
Şu GDDC4-63 DC MCB features a nonpolarity design that simplifies DC wiring and reduces restrictions related to positive and negative connection orientation.
Up to 10kA Breaking Capacity
A rated breaking capacity of 6000A / 10000A provides enhanced short-circuit interruption capability for demanding DC protection systems.
10A to 63A Current Range
Available rated currents include:
10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A.
This allows the GDDC4-63 series to cover multiple photovoltaic and industrial DC circuit requirements.
1P / 2P / 3P / 4P Configurations
The complete GDDC4-63 DC MCB family supports:
- 1P – 250V DC

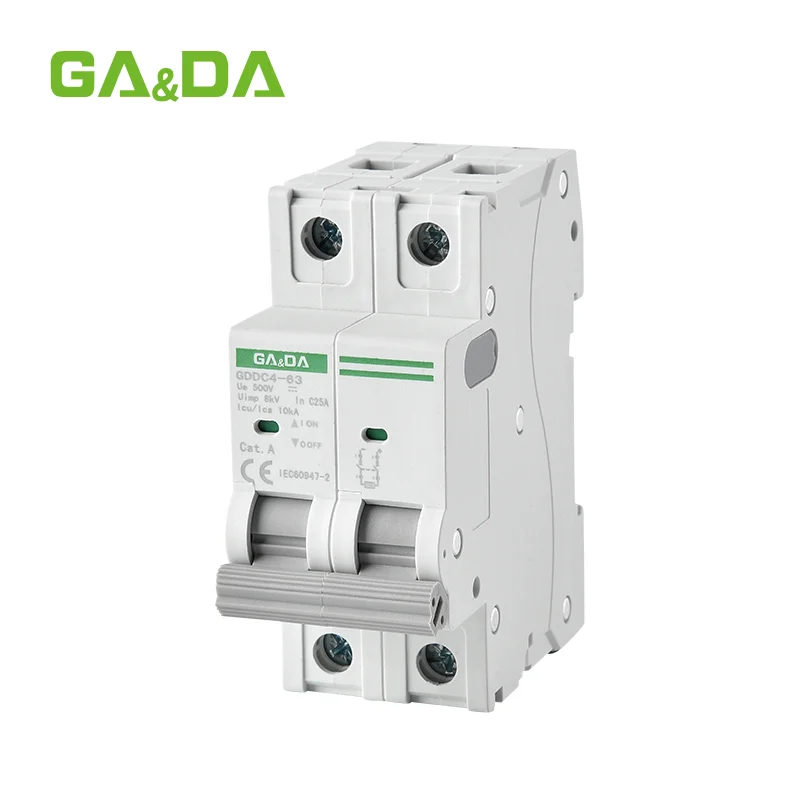

- 2P – 500V DC
- 3P – 750V DC

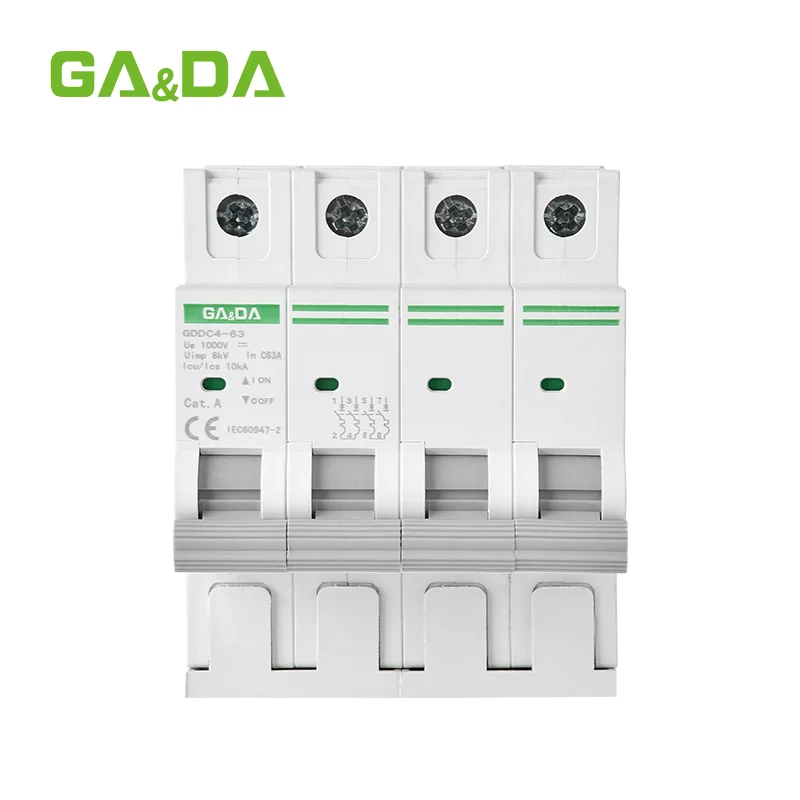

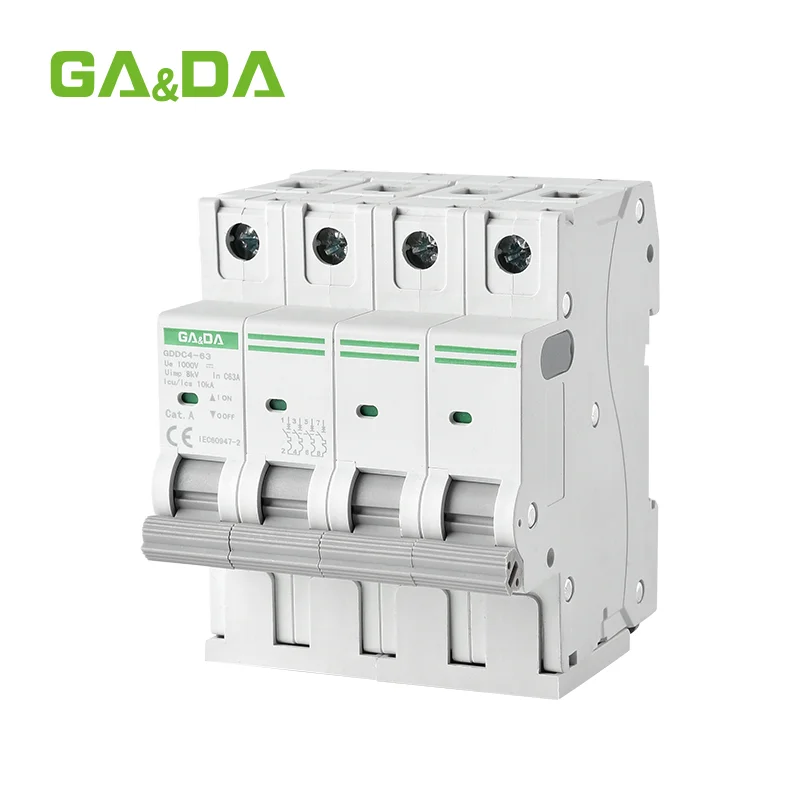

- 4P – 1000V DC
B, C and D Trip Curves
B, C and D thermo-magnetic characteristics are available for matching different load and inrush-current conditions.
DIN Rail Installation
The compact modular structure is designed for standard 35mm DIN rail mounting, simplifying integration into PV combiner boxes and DC distribution cabinets.
Teknik Özellikler
| Parametre | Teknik Özellikler |
|---|---|
| Marka | GA&DA |
| Model | GDDC4-63 |
| Ürün Türü | Nonpolarity DC Miniature Circuit Breaker |
| Anma Akımı | 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Pole Options | 1P / 2P / 3P / 4P |
| Rated Voltage Ue | 1P: 250V / 2P: 500V / 3P: 750V / 4P: 1000V DC |
| Insulation Voltage Ui | 1000V |
| Nominal Frekans | 50/60Hz |
| Rated Breaking Capacity | 6000A / 10000A |
| Impulse Withstand Voltage Uimp | 8 kV |
| Dielectric Test Voltage | 2kV |
| Trip Curve | B / C / D |
| Electrical Life | 8,000 operations |
| Mechanical Life | 10,000 operations |
| Contact Position Indicator | Yes |
| Protection Class | IP20 |
| Reference Temperature | 30°C |
| Ambient Temperature | -5°C to +40°C |
| Storage Temperature | -25°C to +70°C |
| Terminal Connection | Cable / U-type busbar / Pin-type busbar |
| Max. Cable Size | 25mm² |
| Tightening Torque | 2.5 N·m |
| Mounting | 35mm DIN Rail |
| Connection | Top and Bottom |
| Standart | IEC/EN60947-2 |
| Auxiliary Contact | Yes |
| Alarm Contact | Yes |
| Shunt Release | Yes |
| Under Voltage Release | Yes |
Applications of GDDC4-63 DC MCB
Şu GDDC4-63 DC MCB is suitable for DC systems requiring reliable protection and flexible wiring arrangements.
Tipik uygulama alanları şunlardır:
- Solar photovoltaic systems
- PV combiner boxes
- Solar inverter DC circuits
- Battery energy storage systems
- DC distribution cabinets
- Charging equipment
- Communication power systems
- Industrial DC control systems
- Renewable energy equipment
- OEM electrical panels
The combination of nonpolarity wiring and up to 10kA breaking capacity makes the GDDC4-63 DC MCB especially suitable for higher-performance photovoltaic and industrial DC protection applications.
Why Choose GA&DA GDDC4-63 DC MCB?
Şu GDDC4-63 DC MCB provides a stronger protection specification than conventional lower-breaking-capacity DC miniature circuit breakers while retaining a compact DIN rail format.
Başlıca avantajları şunlardır:
- Nonpolarity wiring design
- Up to 10kA breaking capacity
- Rated current from 10A to 63A
- 1P / 2P / 3P / 4P options
- Voltage configurations up to 1000V DC
- B / C / D trip curves
- IEC/EN60947-2 compliance
- 8 kV darbe dayanım gerilimi
- Compact DIN rail mounting
- Accessory expansion available
- Suitable for photovoltaic and energy-storage systems
- OEM, distributor and project purchasing support
For wholesalers, solar equipment manufacturers and panel builders, the GDDC4-63 DC MCB provides a versatile DC circuit protection platform for different voltage and current requirements.
Sık Sorulan Sorular
What is the main advantage of the GDDC4-63 DC MCB?
The GDDC4-63 DC MCB uses a nonpolarity design, providing greater flexibility when wiring DC circuits.
What breaking capacity does the GDDC4-63 provide?
The series is rated at 6000A / 10000A, depending on the applicable configuration.
What current ratings are available?
The GDDC4-63 DC MCB is available in 10A, 16A, 20A, 25A, 32A, 40A, 50A and 63A.
Hangi direk konfigürasyonları mevcuttur?
The complete series includes 1P, 2P, 3P and 4P configurations.
What is the maximum rated voltage?
The 4P GDDC4-63 DC MCB supports rated voltage up to 1000V DC.
