GDA-12WAY Plastic Distribution Box Overview
Şu GDA-12WAY plastic distribution box is designed for medium-size low-voltage power distribution systems requiring organized circuit protection within a durable enclosure. Its 12-way capacity provides more installation space than smaller household distribution boxes while maintaining a compact wall-mounted structure.
Manufactured from ABS mühendislik plastiği, the enclosure provides electrical insulation, corrosion resistance and mechanical protection for installed components. The IP65-rated structure helps protect internal breakers and wiring against dust and water ingress.

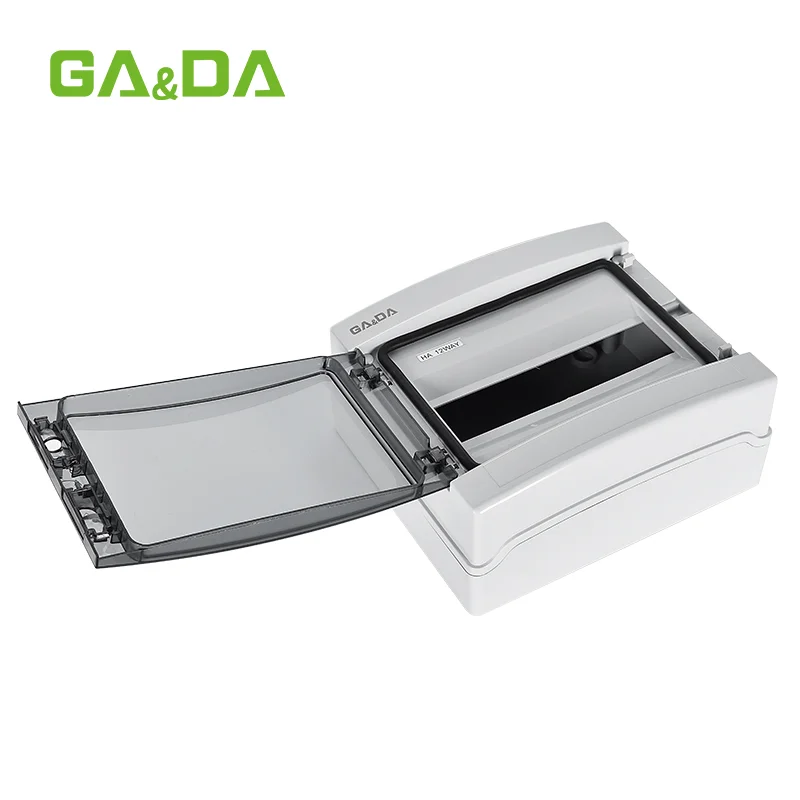

Şu GDA-12WAY plastic distribution box features a dark transparent cover, allowing maintenance personnel to visually inspect internal circuit breakers while keeping the enclosure closed.
With overall dimensions of 298 × 259 × 140mm, the box provides sufficient internal space for residential, commercial and light industrial circuit distribution.
Ürün Özellikleri
- 12-way modular capacity
- IP65 su ve toz geçirmez koruma
- ABS engineering plastic construction
- Flame-retardant enclosure material
- Şeffaf kontrol kapağı
- Duvara / yüzeye montaj
- Suitable for modular DIN rail equipment
- Organized internal circuit arrangement
- Suitable for indoor and protected outdoor use
Şu GDA-12WAY plastic distribution box is a practical choice for projects requiring more branch circuits than a compact 4-way or 8-way enclosure.
Teknik Özellikler
| Parametre | Teknik Özellikler |
|---|---|
| Marka | GA&DA |
| Model | GDA-12WAY |
| Yollar | 12 Ways |
| Malzeme | ABS Mühendislik Plastiği |
| Koruma Seviyesi | IP65 |
| Nominal Gerilim | 220–380 V AC |
| Frekans | 50/60 Hz |
| Montaj | Duvara / Yüzeye Montaj |
| Kapak | Şeffaf |
| Boyutlar | 298 × 259 × 140mm |
| Sipariş Kodu | 276009 |
| Standartlar | IEC 60529 / EN 60309 |
| Özellikler | Su Geçirmez / Toz Geçirmez / Alev Geciktirici |

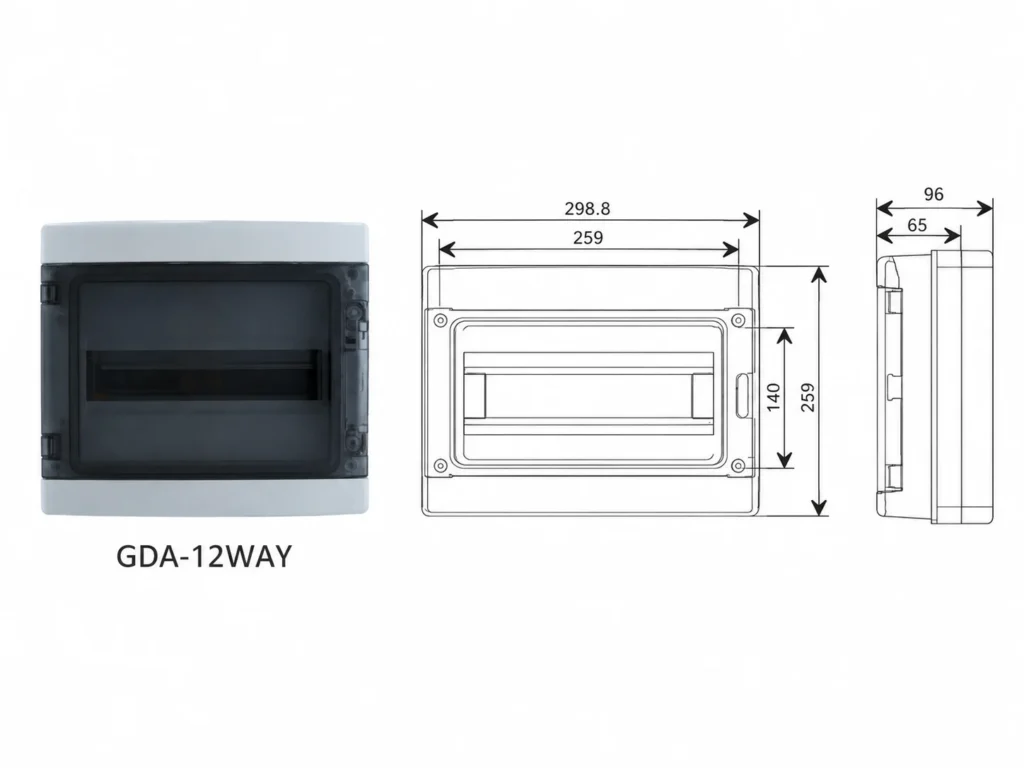

Ürün boyutu
Başvurular
Şu GDA-12WAY plastic distribution box can be used in:
- Konut dağıtım panoları
- Apartments and villas
- Retail stores
- Offices
- Workshops
- Lighting distribution systems
- Small commercial buildings
- Machinery auxiliary circuits
- OEM control systems
Its 12-way capacity provides a good balance between enclosure size and available circuit positions.
Why Choose GA&DA GDA-12WAY?
Şu GDA-12WAY plastic distribution box provides additional circuit capacity while retaining a manageable enclosure size.
Başlıca avantajları şunlardır:
- 12-way circuit capacity
- IP65 koruma sınıfı
- Alev geciktirici ABS gövde
- Şeffaf koruyucu kılıf
- Organized breaker installation
- Convenient inspection
- Duvara monte kurulum
- Suitable for OEM and project purchasing
For electrical contractors and panel builders, the GDA-12WAY plastic distribution box offers a versatile solution for medium-size AC distribution requirements.
Sık Sorulan Sorular
What is the capacity of the GDA-12WAY?
It is designed as a 12-way distribution box.
Boyutları nedir?
The enclosure measures approximately 298 × 259 × 140mm.
Is it suitable for outdoor applications?
Its IP65 enclosure provides dust and water protection, although installation conditions should still be considered.
What is the enclosure material?
ABS engineering plastic.
Can breakers be inspected without opening the cover?
Yes. The transparent cover allows visual inspection.
