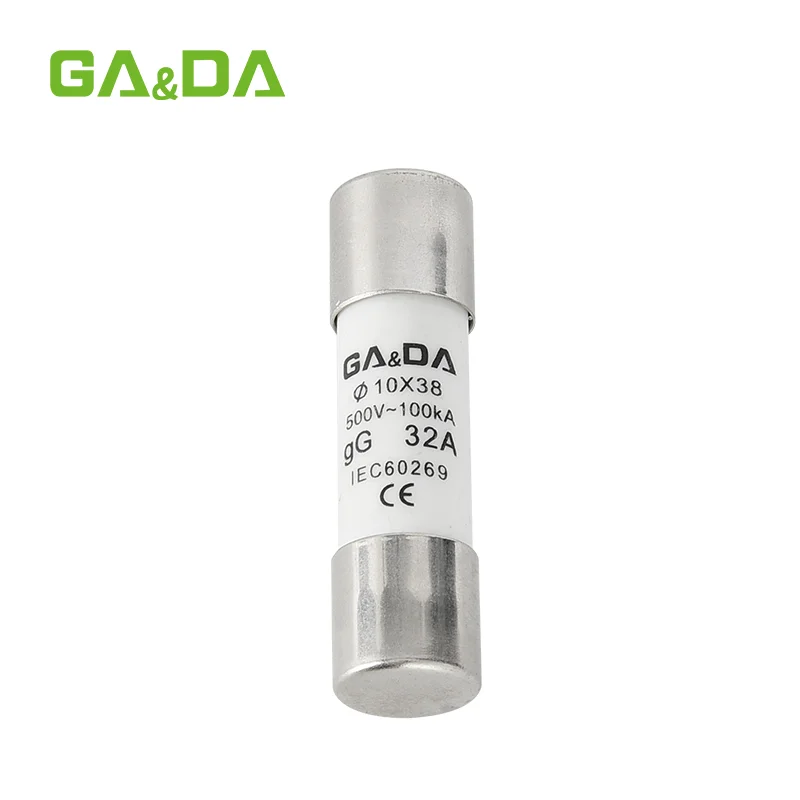

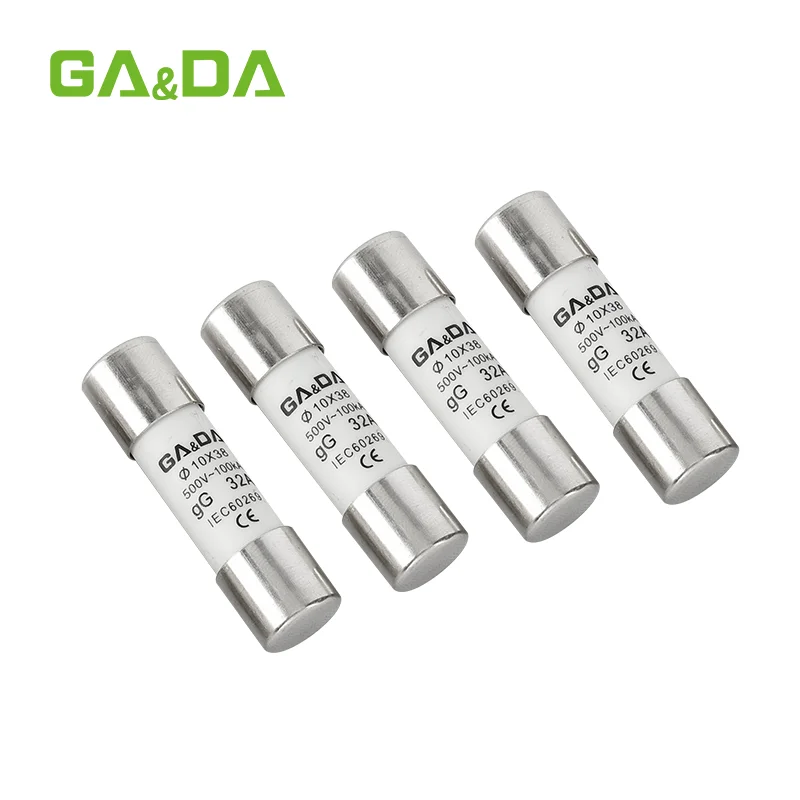

RO15 32A Fuse Link Overview
The GA&DA RO15 32A fuse link is a compact cylindrical fuse designed for overcurrent and short-circuit protection in low-voltage electrical systems.
Its cylindrical 10x38mm format is widely used in modular electrical protection equipment because it combines compact dimensions with convenient fuse replacement.
The RO15 series can be paired with a compatible RT18-32 fuse holder, making it suitable for distribution boards, industrial control panels, machinery and electrical equipment where DIN rail fuse protection is required.
For distributors and panel builders, the standardized 10x38mm format also simplifies stock management because the fuse can be matched with commonly used cylindrical fuse holders.
Product Features
Compact 10x38mm Fuse Format
The RO15 uses the 10x38mm cylindrical fuse size, allowing it to fit into compact low-voltage fuse holders and modular panel protection systems.
This size is especially useful where installation space is limited but dependable circuit protection is still required.
32A Rated Current
The product shown is rated at 32A, making it suitable for circuits designed around this current level.
Before selecting the fuse, the circuit load, conductor rating and equipment requirements should all be checked to ensure correct protection coordination.
gG Full-Range Protection
The fuse body is marked gG, indicating full-range protection for general low-voltage circuits.
gG fuse links are commonly used to protect:
- Power cables
- Conductors
- Distribution circuits
- Control circuits
- Industrial electrical equipment
They are designed to respond to both overload and short-circuit conditions within their specified operating curve.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GA&DA |
| Series | RO15 |
| Product Type | Cylindrical Fuse Link |
| Rated Current | 32A |
| Fuse Size | 10x38mm |
| Operating Class | gG |
| Rated Voltage | 500V AC |
| Breaking Capacity | 100kA |
| Standard | IEC 60269 |
| Certification Marking | CE |
| Compatible Fuse Base | RT18-32 Series |
| Application | Low-Voltage Circuit Protection |
Fuse Size
Typical Applications
The RO15 32A fuse link is suitable for use in electrical systems where compact cylindrical fuse protection is required.
Typical applications include:
- Low-voltage distribution boards
- Electrical control cabinets
- Industrial control panels
- Machinery protection
- Automation equipment
- Commercial power distribution
- OEM electrical assemblies
- Power supply circuits
- Equipment feeder protection
- Modular electrical panels
Its small cylindrical construction makes it especially useful in installations where multiple protective devices need to be fitted into a limited panel space.
Selecting the Correct 10×38 Fuse Link
The physical size of a fuse alone is not enough to determine whether it is suitable for an application.
Before selecting the RO15 32A model, engineers and buyers should confirm:
- Required rated current
- System voltage
- Fuse operating class
- Expected short-circuit level
- Conductor current capacity
- Compatible fuse holder
- Coordination with other protective devices
A 32A fuse should not automatically be selected simply because the normal load current is below 32A. Starting currents, temporary overloads and equipment characteristics may affect the correct fuse rating.
For motors, transformers or equipment with significant inrush current, the operating characteristics of the circuit should be reviewed before final selection.
Compatible Fuse Holder
The RO15 10x38mm fuse link is designed to work with compatible 10x38mm fuse holders, including the GA&DA RT18-32 series.
This pairing provides a modular protection solution:
RO15 Fuse Link + RT18-32 Fuse Holder
For panel builders, this makes it easier to combine fuse protection with other DIN rail devices inside low-voltage distribution equipment.
Using the correct fuse holder is important because the holder must match the fuse dimensions, current requirements and electrical ratings of the application.
Benefits for Distributors and OEM Buyers
The RO15 series is suitable for distributors, wholesalers, panel builders and industrial manufacturers requiring standardized cylindrical fuse products.
Key purchasing benefits include:
- Standard 10x38mm format
- Clear 32A current marking
- gG protection class
- 500V AC rating
- 100kA breaking capacity
- Compatible modular fuse holders
- Compact size for panel applications
- Suitable for bulk procurement
- Suitable for distributor inventory
- OEM and project order support
GA&DA can support customers sourcing cylindrical fuse links for panel production, replacement stock or industrial project requirements.
