GDPV-22B DC Fuse Base Overview
The GA&DA GDPV-22B DC fuse base is designed for photovoltaic and other high-voltage DC protection systems that require reliable fuse mounting, easy replacement and compact panel installation. Rated at 50A and suitable for 1000V / 1500V DC applications, this series is built for 22x58mm gPV fuse links and is widely suited for solar combiner boxes, inverter-side protection, DC distribution cabinets and renewable energy equipment.
The GDPV-22B family includes two main versions:

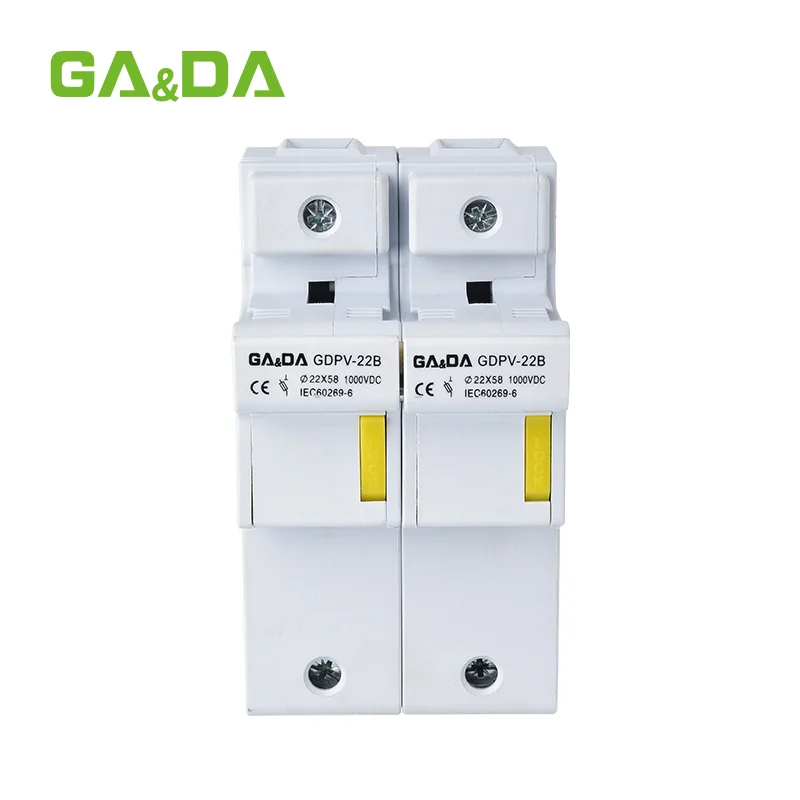

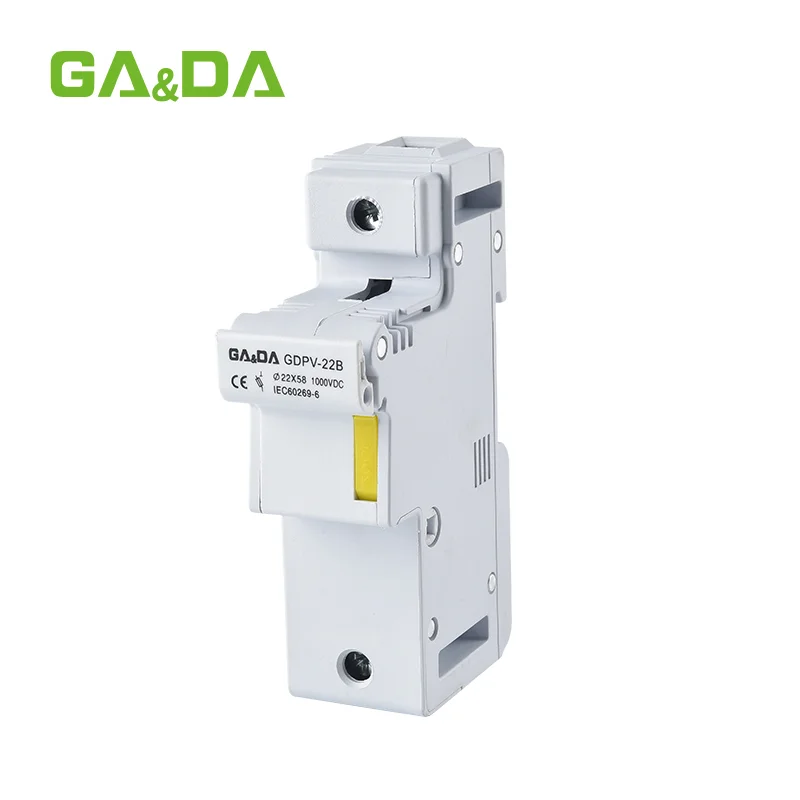

- GDPV-22B – standard version

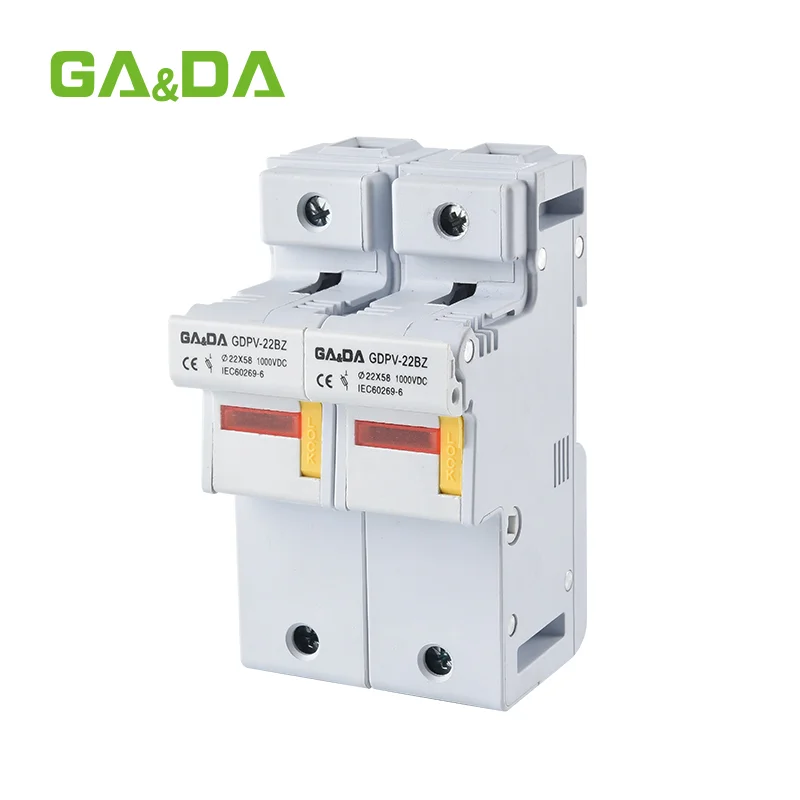

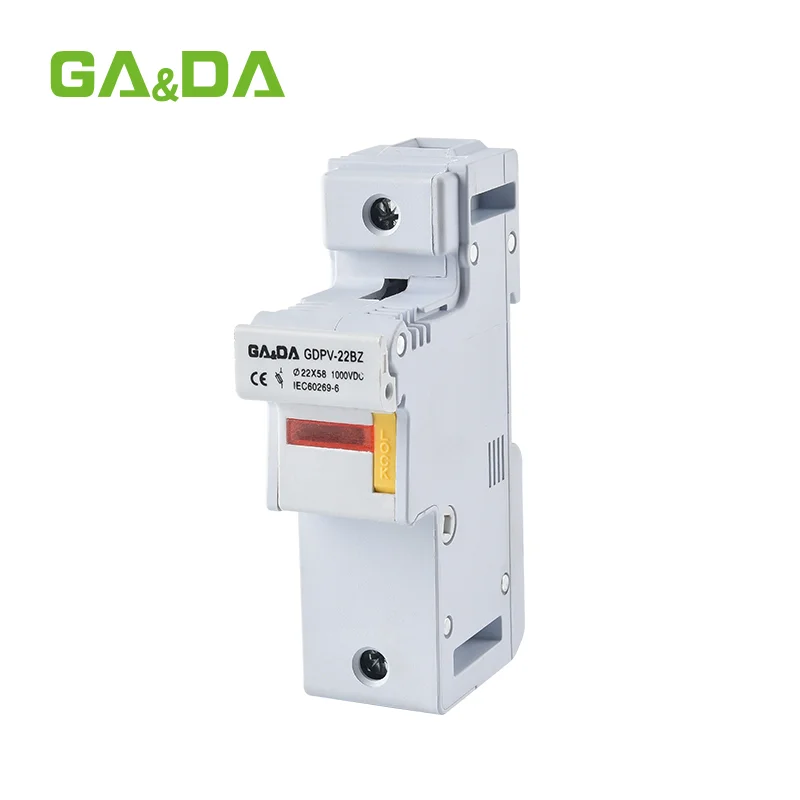

- GDPV-22BZ – version with status indication
Both versions are available in 1P and 2P configurations, making the series flexible for different photovoltaic system layouts.
This product family combines a practical modular structure with convenient operation during installation and maintenance. The holder is suitable for TH35 DIN rail mounting, helping panel builders integrate fuse protection neatly with other DC devices such as breakers, isolators and surge protective devices.
The larger 22x58mm fuse format allows the GDPV-22B series to support higher-current PV circuits while keeping the design compact enough for modern electrical enclosures. Clear front marking helps users quickly identify the model and operating voltage during panel assembly, inspection and replacement work.
Product Features
50A Current Rating
The GDPV-22B is designed for 50A DC applications, making it suitable for photovoltaic circuits that require higher current capacity.
1000V / 1500V DC Capability
The series supports 1000V and 1500V DC systems, allowing it to be used in a wide range of solar and renewable-energy installations.
22x58mm Fuse Compatibility
This fuse base is designed for 22x58mm cylindrical gPV fuse links. The larger fuse size makes it suitable for applications that require stronger DC protection performance.
1P and 2P Options
The GDPV-22B family is available in:
- 1P
- 2P
These options give system designers more flexibility when selecting products for different PV circuit arrangements.
Standard and Indicator Versions
The GDPV-22B is the standard version, while GDPV-22BZ adds a status indication function for easier inspection and maintenance.
DIN Rail Installation
The product is suitable for TH35 DIN rail mounting, which helps save installation time and keeps cabinet layouts neat and consistent.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GA&DA |
| Series | GDPV-22B |
| Standard Version | GDPV-22B |
| Indicator Version | GDPV-22BZ |
| Product Type | DC Fuse Base / PV Fuse Holder |
| Rated Current | 50A |
| Rated Voltage | 1000V / 1500V DC |
| Fuse Size | 22x58mm |
| Pole Options | 1P / 2P |
| Operating Class | gPV |
| Mounting Type | TH35 DIN Rail |
| Status Indication | Optional |
| Standard | IEC 60269-6 / UL 248-19 |
| Order Number | GDPV-22B (220096) |
| Reference Dimensions | 134 × 104 × 36 mm |

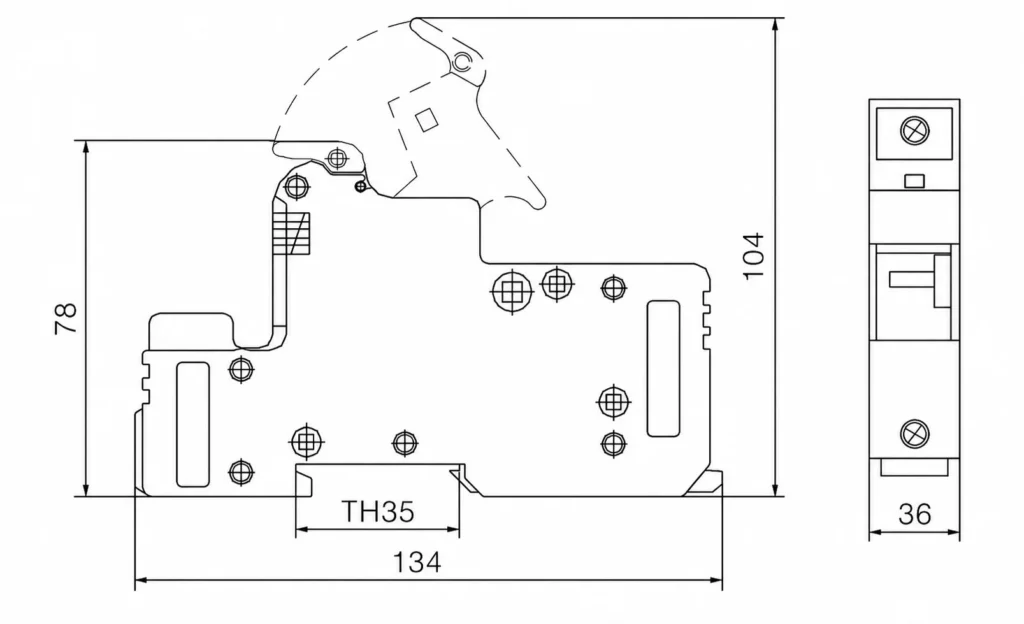

Dimension Figure

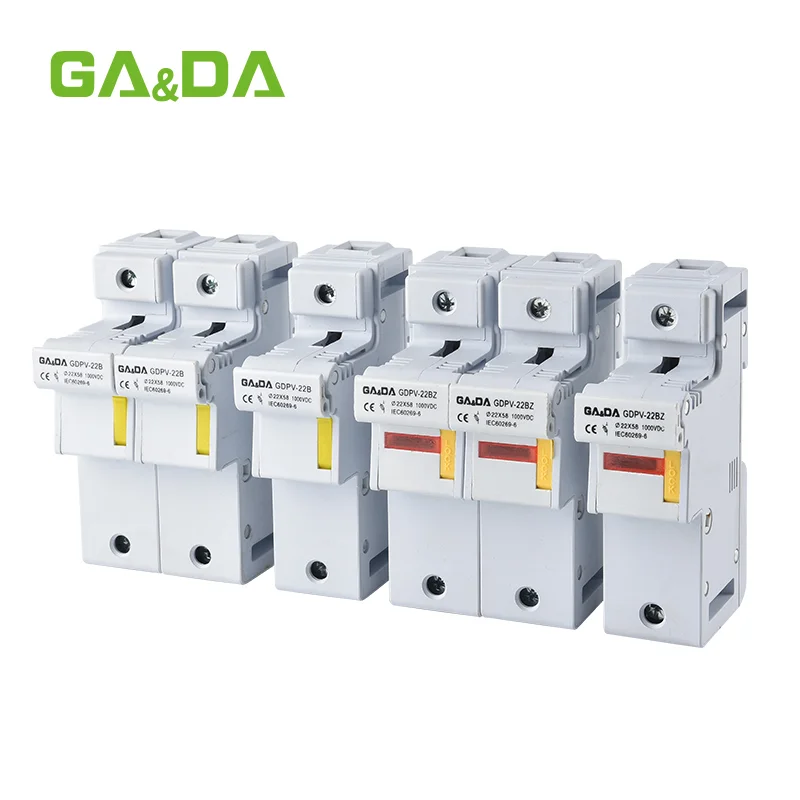

Available Models
| Model | Pole | Status Indication |
|---|---|---|
| GDPV-22B 1P | 1P | No |
| GDPV-22B 2P | 2P | No |
| GDPV-22BZ 1P | 1P | Yes |
| GDPV-22BZ 2P | 2P | Yes |
Applications
The GDPV-22B series is suitable for photovoltaic and high-voltage DC protection systems where stable fuse mounting and convenient maintenance are required.
Typical applications include:
- Solar PV combiner boxes
- Photovoltaic string protection
- Inverter DC input circuits
- DC distribution panels
- Renewable-energy electrical cabinets
- Industrial DC protection assemblies
- Battery-related DC systems
- OEM photovoltaic equipment
- Commercial and utility solar projects
Its 22x58mm fuse compatibility and 1500V DC capability make it a practical choice for projects that require larger cylindrical fuse protection than smaller-format PV fuse bases.
Why Choose GA&DA GDPV-22B?
The GDPV-22B series is designed for customers who need a higher-capacity DC fuse base for photovoltaic protection systems.
Key advantages include:
- 50A rated current
- 1000V / 1500V DC capability
- 22x58mm gPV fuse compatibility
- 1P and 2P versions
- Standard and indicator models
- TH35 DIN rail installation
- Compact and practical structure
- Easy identification and replacement
- Suitable for PV combiner boxes and DC cabinets
- Flexible for distributors, OEMs and project buyers
For panel builders and solar equipment suppliers, the GDPV-22B offers a practical product family that covers multiple configuration needs while keeping product selection simple.
