Product Overview

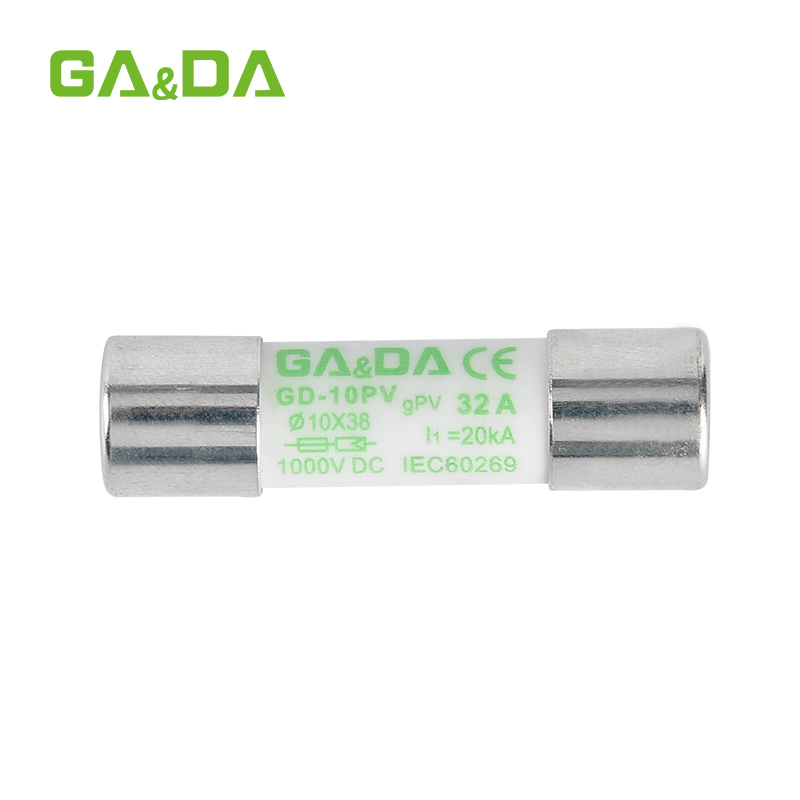

The GD-10PV Direct Current Fuse Link 32A is specially designed for photovoltaic (PV) and renewable energy systems, providing precise and reliable overcurrent protection for DC circuits up to 1000V. With its 10x38mm compact form factor, it offers compatibility with standard PV fuse holders and ensures fast response under overload or fault conditions.
Engineered for safety, stability, and long-term performance, the GD-10PV 32A DC fuse link helps protect solar modules, inverters, and combiner boxes from potential short circuits and reverse currents — ensuring consistent energy flow and extended equipment lifespan.
Product Features
- High Breaking Capacity: Designed for photovoltaic systems with DC voltages up to 1000V, ensuring safety during fault conditions.
- Compact 10x38mm Housing: Compatible with standard DC fuse holders for easy installation and replacement.
- Reliable Protection: Provides fast-acting protection against overcurrent in solar circuits.
- Durable Construction: Built to withstand harsh environments with IP65-rated enclosure and wide temperature tolerance.
- Multiple Current Ratings: Available in 1A–32A versions to suit diverse DC protection needs.
Keyword Integration: DC fuse link 32A, PV fuse link 10x38mm, 32A solar fuse link, GD-10PV fuse link.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | GDS3-2 |
| Number of Poles | 2P (54mm) |
| Rated Voltage (VAC) | 110/220V, 220/230/240V AC |
| Rated Working Current (A) | 40/63A / 63/80A / 80A (depends on model) |
| Energy Integrals I²t (A·s) Pre-arcing | Varies by model (e.g., 0.15, 1.2, 3.9) |
| Energy Integrals I²t (A·s) Total | Varies by model (e.g., 0.4, 3.3, 11) |
| Order Number | Multiple options (e.g., 220040, 220041, etc.) |
| Over-/Under-Voltage Protection | Configurable by model |
| Recovery Time | 1–400s or 1–3s (depending on type) |
| Own Power Consumption | 0.5W–2W |
| Ambient Temperature | -20°C to +40°C |
| Installation | 35mm DIN rail |
| Elevation | ≤ 2000m |
| Relative Humidity | 0–95%, no condensation |
| Poles | 2P / 3P / 4P (by model) |
| Protection Grade | IP65 |
| Output Switch | DC MCB (optional) / DC isolation switch (standard) |
| Waterproof Connectors | PG / MC4 |
| PV DC Fuse | Standard |
| PV SPD | Standard |
| Monitoring Module | Optional |
| Preventing Diode | Optional |
| Box Material | Iron |
| Installation Method | Wall-mounted type |
| Operating Temperature | -25°C to +55°C |
| Additional Options | Electrical grade, service life, certification info, size & weight |
Applications
The GD-10PV Direct Current Fuse Link 32A is designed for solar power systems and renewable energy applications, providing dependable DC circuit protection.
Typical Applications:
- Photovoltaic Arrays: Protects solar modules and strings against overloads.
- PV Combiner Boxes: Ensures safety and stability in multi-string solar systems.
- Inverter DC Input Protection: Prevents reverse current flow and component damage.
- Battery Storage Units: Safeguards DC lines in energy storage installations.
- Renewable Energy Systems: Compatible with hybrid solar-wind systems and DC grids.
Long-tail keywords integrated: 32A DC fuse link for photovoltaic systems, 10x38mm solar fuse link, 32 amp fuse link for PV combiner box.
Why Choose Us
- Professional DC Protection Device Manufacturer: Specializing in PV and renewable energy fuse solutions for over a decade.
- OEM/ODM Support: Custom branding, labeling, and voltage/current configuration available.
- Global Standards: Complies with IEC, UL, and RoHS certifications for international export.
- Reliable Performance: All products tested for stability, durability, and precise protection response.
- Worldwide Export Experience: Serving solar energy distributors, OEM integrators, and EPC contractors globally.
We are a trusted DC fuse link supplier, offering dependable solutions for solar energy and industrial DC protection.
FAQ
What is your Minimum Order Quantity (MOQ)?
Our MOQ for the GD-10PV fuse link is typically 100 pieces, but sample orders are accepted for testing.
Can you customize voltage, current rating, or packaging?
Yes, we offer OEM/ODM customization based on your application requirements.
What is the delivery time?
Standard lead time is 7–15 business days, depending on order quantity and configuration.
Do you provide warranty support?
Yes, all DC fuse links are covered by a 12-month quality warranty against manufacturing defects.
Can this product be used for both solar and industrial DC systems?
Absolutely. The GD-10PV 32A fuse link is suitable for solar PV arrays, battery banks, and industrial DC protection circuits.
