Product Overview

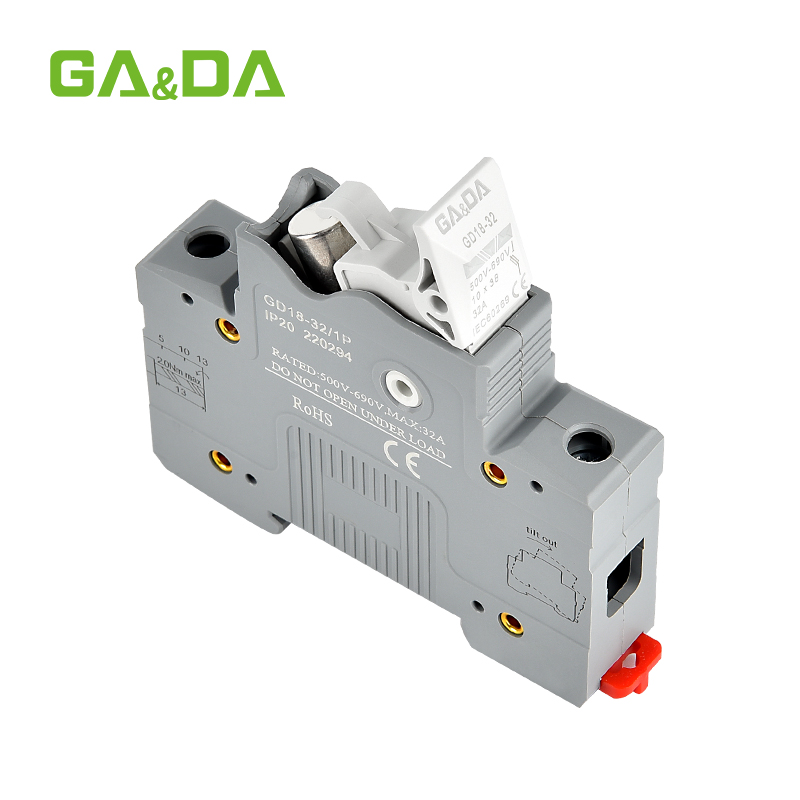

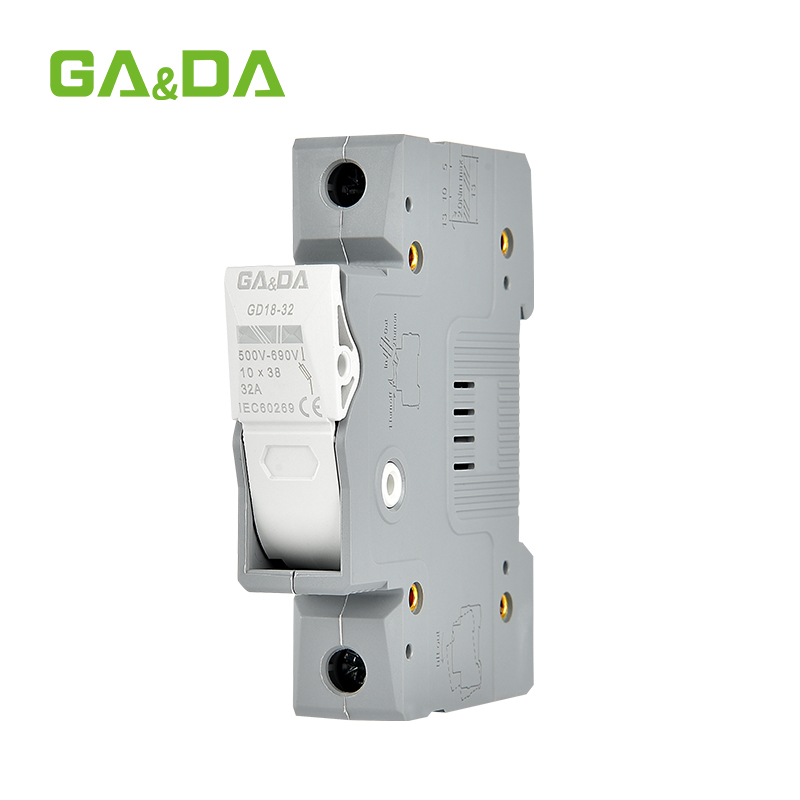

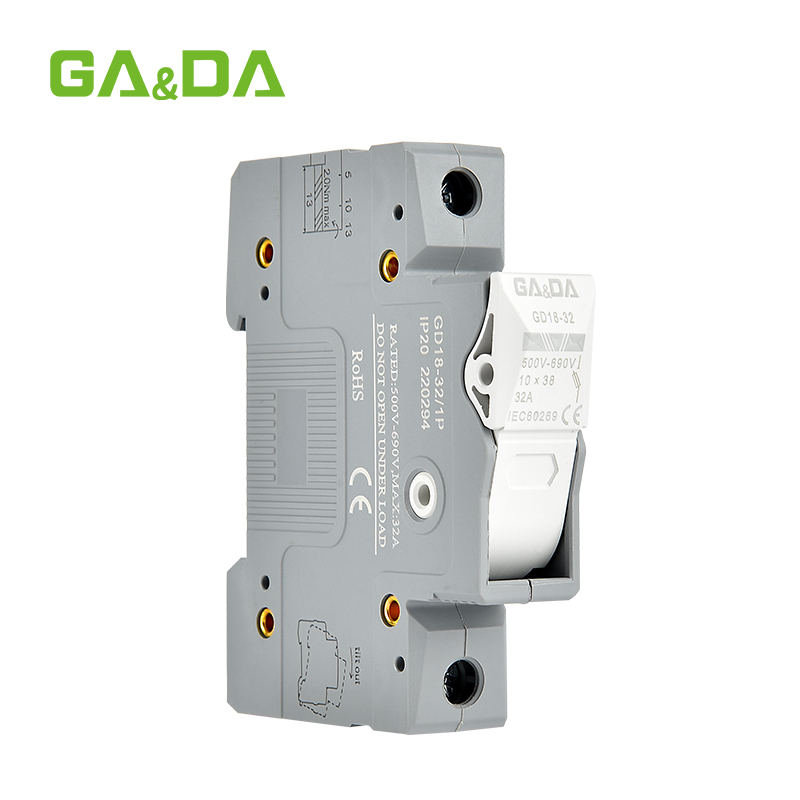

The GA&DA GD18-32 is a reliable 10×38 fuse holder designed for low-voltage electrical protection and distribution systems. This cylindrical fuse holder is suitable for 10x38mm fuse links and is available in 1P, 2P, 3P and 4P configurations for DIN rail installation.
Two versions are available:
- GD18-32: Standard version without indication
- GD18-32Z: Version with indication
Its compact modular structure, DIN rail installation and multiple pole options make the GD18-32 suitable for both industrial and commercial low-voltage applications.
Product Features
- 32A Rated Current: Designed for circuits with rated operational current up to 32A.
- 10x38mm Fuse Compatibility: Suitable for standard cylindrical 10x38mm fuse links.

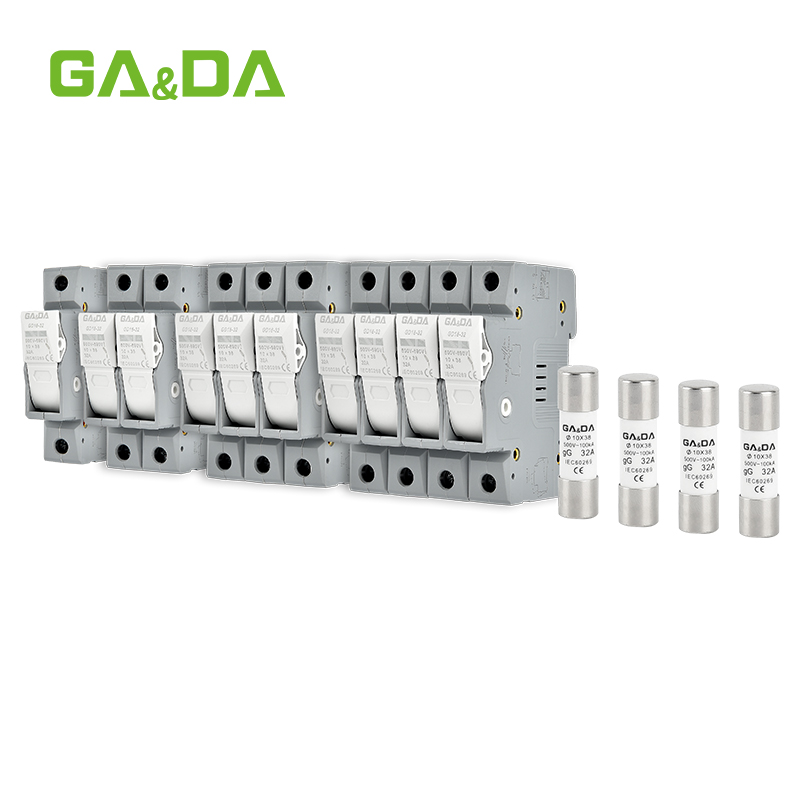

- 1P to 4P Options: Available in 1P, 2P, 3P and 4P configurations.
- Optional Indicator: GD18-32Z models are available with indication for easier fuse status identification.
- DIN Rail Installation: Modular design allows convenient installation inside distribution boards and control cabinets.
- 400/690V AC Rated Operational Voltage: Suitable for a wide range of low-voltage electrical systems.
- High Breaking Capacity with Fuse: Up to 100kA at 500V AC and 50kA at 690V AC when used with a suitable fuse link.
- IP20 Protection: Designed for installation inside electrical enclosures and distribution equipment.
- AC-22B Utilization Category: Suitable for switching mixed resistive and inductive loads under specified operating conditions.
- IEC / UL Reference Standards: Designed according to IEC 60269-2 and UL 248-19 reference standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GA&DA |
| Series | GD18 |
| Model | GD18-32 / GD18-32Z |
| Product Type | Cylindrical Fuse Holder / AC Fuse Base |
| Rated Operational Current (Ie) | 32A |
| Fuse Size | 10x38mm |
| Pole Options | 1P / 2P / 3P / 4P |
| Indicator | GD18-32: No / GD18-32Z: Yes |
| Rated Operational Voltage (Ue) | 400/690V AC |
| Rated Insulation Voltage (Ui) | 800V |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Wiring Range | 0.75–25mm² |
| Mounting Method | DIN Rail Installation |
| Breaking Capacity with Fuse | 100kA at 500V AC / 50kA at 690V AC |
| Utilization Category | AC-22B |
| IP Degree | IP20 |
| Reference Standard | IEC 60269-2 / UL 248-19 |
Available GD18-32 Models
The GD18-32 series provides multiple pole and indication configurations to meet different installation requirements.
| Model | Pole | Indicator | Fuse Size | Rated Current |
| GD18-32/1P | 1P | No | 10x38mm | 32A |
| GD18-32/2P | 2P | No | 10x38mm | 32A |
| GD18-32/3P | 3P | No | 10x38mm | 32A |
| GD18-32/4P | 4P | No | 10x38mm | 32A |
| GD18-32Z/1P | 1P | Yes | 10x38mm | 32A |
| GD18-32Z/2P | 2P | Yes | 10x38mm | 32A |
| GD18-32Z/3P | 3P | Yes | 10x38mm | 32A |
| GD18-32Z/4P | 4P | Yes | 10x38mm | 32A |
Different configurations allow distributors and equipment manufacturers to select suitable models according to circuit design, pole requirements and maintenance preferences.
Applications of the 10×38 Fuse Holder
The GD18-32 10×38 fuse holder can be used in a wide range of low-voltage electrical protection and distribution applications.
Typical applications include:
- Low-voltage distribution boards
- Electrical control panels
- Industrial control cabinets
- Machinery and automation equipment
- Commercial electrical distribution systems
- OEM electrical assemblies
- Power distribution equipment
- Industrial electrical protection systems
Its compact DIN rail design makes it especially suitable for applications where installation space is limited and modular electrical components are required.
The availability of 1P, 2P, 3P and 4P configurations also allows the GD18-32 series to be integrated into different single-phase and multi-pole electrical systems.
Why Choose the GA&DA 10×38 Fuse Holder?
For panel builders, distributors and industrial buyers, product consistency and installation flexibility are important when selecting fuse protection components.
The GD18-32 series combines standard 10x38mm fuse compatibility, multiple pole configurations and DIN rail installation in one modular product range.
Key advantages include:
- Multiple pole options from 1P to 4P
- Standard and indicator versions available
- Compact DIN rail mounting structure
- Suitable for standard 10x38mm cylindrical fuse links
- 32A rated operational current
- Suitable for electrical distribution and industrial control applications
- Bulk supply support for distributors and project buyers
- OEM requirements can be discussed according to order requirements
Whether you require a standard 10×38 fuse holder for distribution boards or an indication-equipped GD18-32Z version for easier maintenance, GA&DA can provide different configurations according to your application.
For model selection, quantity requirements or technical information, send us your required pole configuration and order quantity for quotation.
FAQ
What fuse links can be used in this 10x38 fuse holder?
This 10x38 fuse holder is designed for standard 10x38mm cylindrical fuse links and is suitable for low-voltage electrical protection applications.
Can I customize the fuse base or request specific ratings?
Yes, we provide OEM/ODM customization including current ratings, labeling, and housing materials.
What is the typical delivery time?
Standard models ship within 7–15 days. Custom or large orders may take 20–30 days depending on quantity.
Do you provide samples for testing?
Yes, we offer free or low-cost samples to qualified distributors and industrial clients.
How do you ensure product quality?
Every fuse base undergoes 100% inspection and testing for insulation, continuity, and mechanical strength before shipment.
