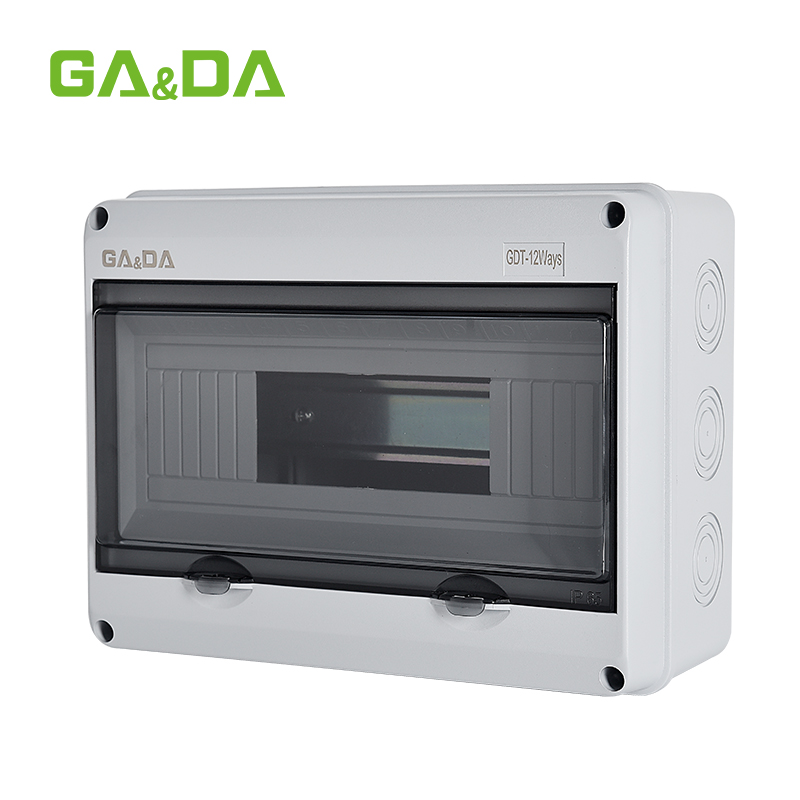

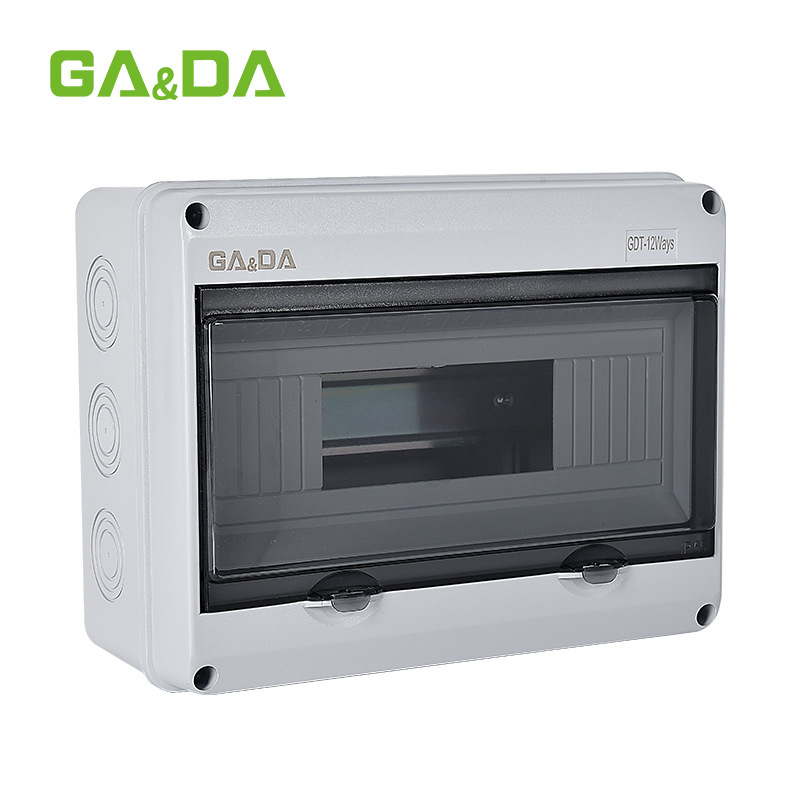

The GDT-12WAY Plastic Distribution Box (T) is a high-reliability electrical enclosure designed for solar photovoltaic and industrial control systems. Built from impact-resistant ABS plastic, this 12-way surface-mounted distribution box ensures safe, stable, and efficient current distribution across multiple circuits.
Rated up to 1000V DC with IP65 waterproof protection, it provides complete insulation and resistance against dust, humidity, and corrosion—making it ideal for harsh outdoor or industrial environments.
Its modular design supports MCB installation, surge protection devices (SPD), and optional communication modules for smart PV applications.
Product Features
- ⚡ High Voltage Endurance – Supports systems up to 1000V DC, ensuring reliable operation in demanding PV and electrical installations.
- 🧱 Durable Plastic Enclosure – Made from high-strength ABS plastic, resistant to impact, UV, and corrosion.
- 🌧️ IP65 Waterproof Protection – Fully sealed housing protects internal components from dust and moisture.
- 🔌 Flexible Configuration – 12 inputs and 1 output design compatible with MCB, fuse, and SPD installations.
- 🧰 Optional Communication Function – Version available with integrated monitoring for smart energy systems.
- ⚙️ Wall-Mounted, Compact Design – Easy installation and maintenance for both indoor and outdoor setups.
Keyword integration: 12-way plastic distribution box, 12-gang plastic junction box, 12-way IP65 ABS distribution box.
Technical Specifications
| Classification | GDS-PV1/1-DC1000 | Remarks |
|---|---|---|
| Type | GDS-PV1/1-DC1000 | |
| Order Code | 250002 | |
| Type (With communication function) | GDT-PV1/1-DC1000-FM | |
| Order Code | 250020 | |
| System maximum DC voltage | 1000V DC | |
| Maximum input current for each string | 15A | |
| Maximum input strings | 12 | |
| Maximum output switch current | 200A | |
| Number of inverter MPPT | 1 | |
| Number of output strings | 1 | |
| SPD according to EN 61643-11 / IEC 61643-11 | Type 2 / Class II / T2 | |
| Max. PV voltage (d.c.) (Ucpv) | 1000V DC | |
| Nominal discharge current (8/20 μs) (In) | 20kA | |
| Max. discharge current (8/20 μs) (Imax) | 40kA | |
| Voltage protection level (Up) | ≤4.0kV | |
| Poles | 3P | |
| Protection grade | IP65 | |
| Output switch | DC MCB (optional) / DC isolation switch (standard) | |
| Waterproof Connectors | PG / MC4 | |
| PV DC FUSE | Standard | |
| PV SPD | Standard | |
| Monitoring module | Optional | |
| Preventing diode | Optional | |
| Box material | Iron | |
| Installation method | Wall mounting type | |
| Operating Temperature | -25°C to +55°C |
Applications
The 12-way plastic distribution box is designed for safe DC power distribution and protection in renewable and industrial systems.
✅ Typical Applications:
- Solar PV plants and inverter systems (as a DC combiner or junction box)
- Industrial control panels and machine tools
- Residential and commercial electrical distribution systems
- Automation and energy monitoring installations
- Outdoor power distribution networks requiring IP65 waterproof protection
Keyword integration: 12-way MCB distribution box, 12-way surface mount distribution box, 12-channel plastic distribution box.
Why Choose Us
We are a trusted electrical distribution box manufacturer and exporter, specializing in OEM/ODM solar and industrial enclosures.
Our advantages:
- 🧩 Custom Design & OEM Service – Flexible solutions for voltage rating, color, and logo customization.
- 🧠 Comprehensive Quality Control – Each unit tested under IEC/EN standards for insulation and waterproof performance.
- 🚚 Fast Global Delivery – Efficient logistics for bulk orders worldwide.
- 🔧 Technical Expertise – Over 10 years of experience in solar power protection and electrical distribution solutions.
Partner with us as your reliable plastic distribution box supplier for durable, certified, and cost-efficient electrical enclosures.
FAQ
What is the Minimum Order Quantity (MOQ)?
The MOQ is generally 10 units. Trial orders or mixed models are accepted for testing and evaluation.
Can I get a customized logo or enclosure color?
Yes. OEM and ODM customization options are available according to your brand or project requirements.
How long is the delivery time?
Standard production and delivery take 7–15 working days, depending on quantity and configuration.
Is the box waterproof and UV-resistant?
Yes, the enclosure has an IP65 rating, ensuring protection from dust, water, and sunlight exposure.
Do you provide samples?
Yes. Samples can be provided for quality verification before mass order production.
