Product Features

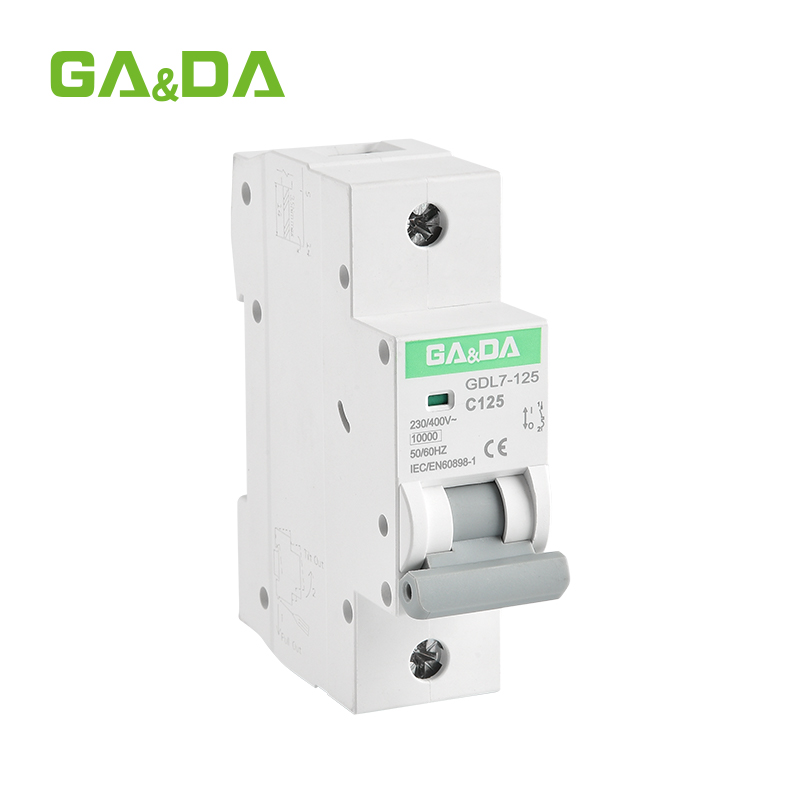

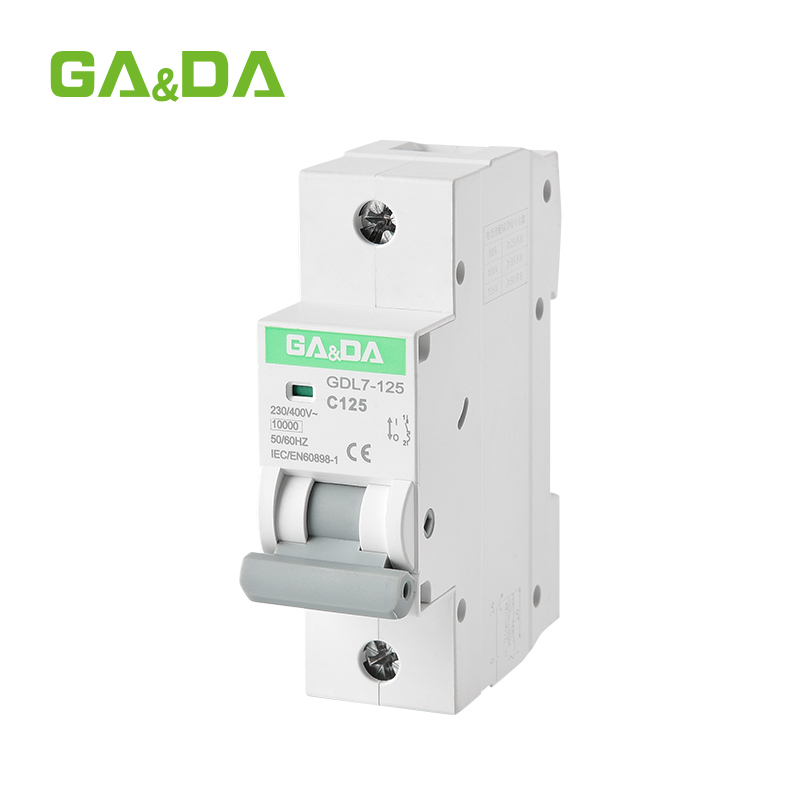

The GDL7-125 AC miniature circuit breaker (MCB) provides dependable overload and short-circuit protection in both commercial and industrial electrical systems.
Built with high breaking capacity (6kA/10kA) and rated current up to 125A, it offers excellent protection performance and long service life.
With compact modular design, IP20 protection, and 1P/2P/3P/4P configurations, it’s ideal for low-voltage AC systems, switchboards, and control panels.
Engineered with thermo-magnetic tripping (B, C, D curves), it ensures accurate protection under various electrical conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Type | GDL7-125 |
| Rated Current (In) | 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A |
| Poles | 1P, 2P, 3P, 4P |
| Rated Voltage (Ue) | 1P: 250V, 2P: 500V, 3P: 750V, 4P: 1000V |
| Insulation Voltage (Ui) | 1000V |
| Rated Frequency | 50/60Hz |
| Rated Breaking Capacity | 6000/10000A |
| Impulse Withstand Voltage (Uimp) | 6kV |
| Dielectric Test Voltage (1 min) | 2kV |
| Tripping Characteristics | B, C, D |
| Electrical Life | 8,000 operations |
| Mechanical Life | 10,000 operations |
| Protection Class | IP20 |
| Ambient Temperature | −5°C to +40°C |
| Storage Temperature | −25°C to +70°C |
| Terminal Connection Type | Cable / U-type busbar / Pin-type busbar |
| Terminal Size (Cable) | 25mm² |
| Tightening Torque | 2.5 N·m |
| Mounting | On DIN rail EN 60715 (35mm) |
| Contact Indicator | Yes |
| Reference Temperature | 30°C |
