Product Features

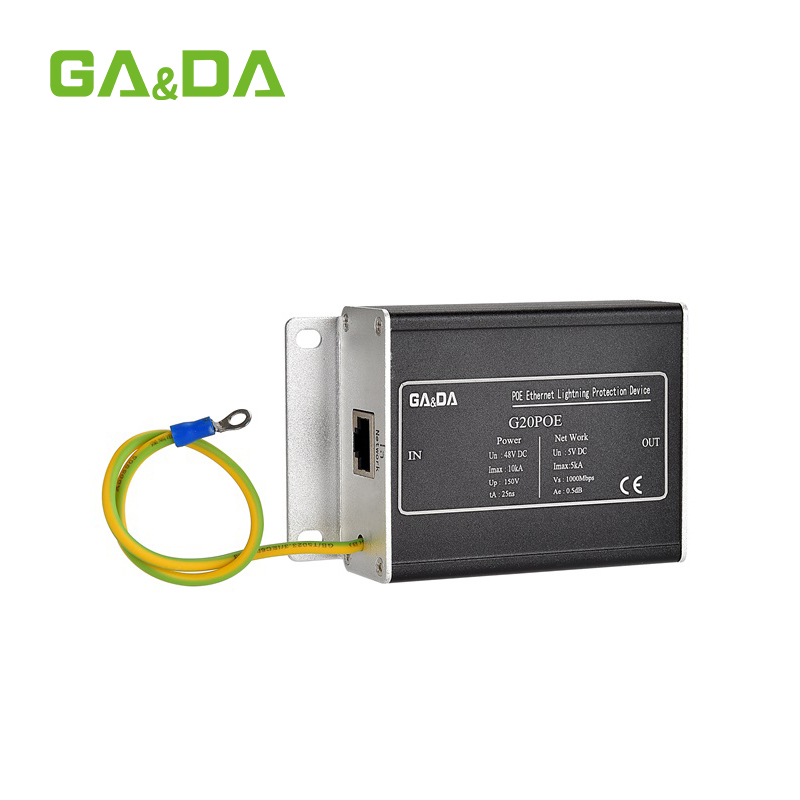

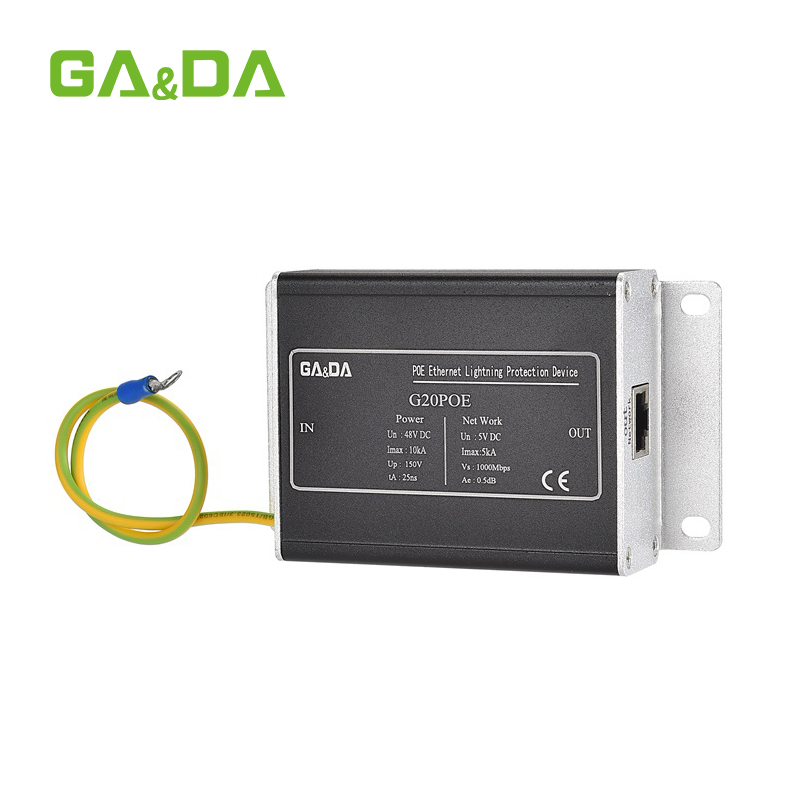

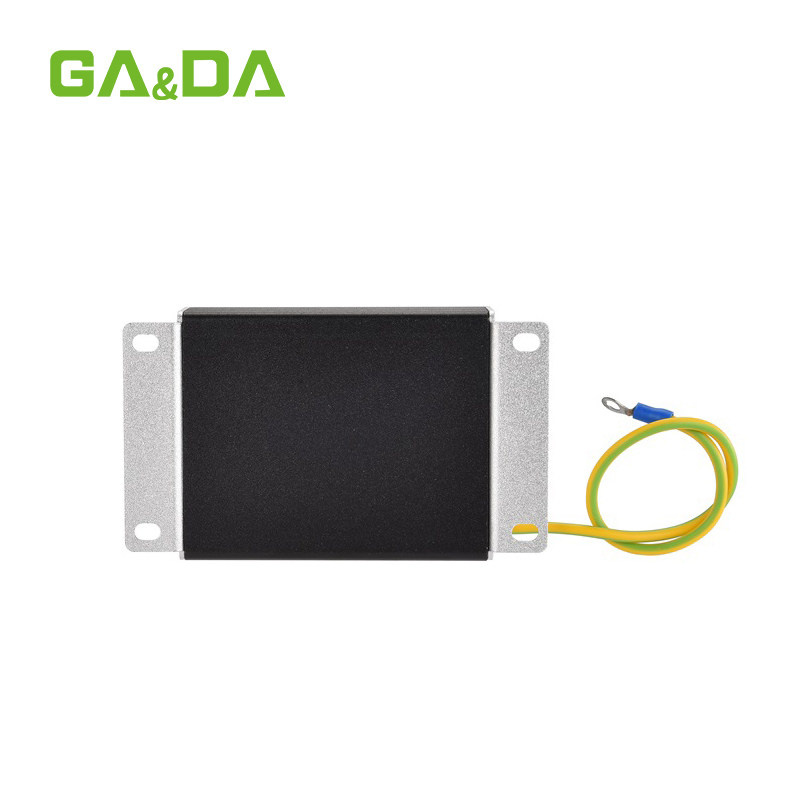

The G20POE Power/Network Integrated Surge Protector combines Ethernet and power line protection in a single compact module. It adopts high-energy transient suppression components and low-capacitance design to ensure minimal signal loss and maximum surge protection. The durable metal housing offers superior heat dissipation and shielding performance, ideal for industrial and outdoor environments.
Technical Parameters
Rated Voltage: 48V POE / 230V AC
Transmission Rate: Gigabit Ethernet 10/100/1000 Mbps
Protection Level: Up to 10kA (8/20μs)
Response Time: <1ns
Connection Interface: RJ45 + Power Terminals
Mounting Type: DIN Rail / Wall Mount
Operating Temperature: -40°C ~ +85°C
| Parameter | Specification |
|---|---|
| Product Series | G20POESeries |
| Number of Protection Ports | 4 Ports, 8 Ports, 16 Ports, 24 Ports |
| Transmission Mode | Simultaneous transmission of DC power and network signals |
| Power Supply Voltage | DC 48V, 60V |
| Network Voltage | 5V, 8V |
| Nominal Discharge Current | 3kA (8/20μs waveform) |
| Maximum Discharge Current | 5kA (8/20μs waveform) |
| Protection Mode | Line-to-Line: 100V; Line-to-Ground: 350V |
| Data Transfer Rate | 1000 Mbps (Gigabit) |
| Insertion Loss | 0.2 dB |
| Compatible Pins Protection | RJ45 Pins 1 to 8 |
| Installation Method | Screw fixation |
| Operating Temperature Range | -40°C to 85°C |
| Dimensions (mm) | 204 x 112 x 48 |
| Certifications | CCB, RoHS, A |
Application
Widely used in network communication systems, surveillance cameras, POE switches, routers, and access points. Suitable for industrial automation, outdoor monitoring, data centers, and smart buildings where both power and network protection are required.
Why Choose Us
We offer high-quality surge protection devices with fast delivery, OEM/ODM customization, and strong export experience. Our products meet international safety standards, ensuring reliable performance and long service life. As a direct manufacturer, we provide competitive pricing and professional technical support for all customers.
FAQ
What is the main purpose of the G20POE Power/Network Integrated Surge Protector?
It provides combined surge protection for both power supply and network transmission lines in PoE environments, ensuring comprehensive system safety.
How many ports does the G20POE series offer for network protection?
The series includes multiple configurations of 4, 8, 16, and 24 ports to cover different networking needs.
What is the nominal working voltage for power and network lines?
The device supports DC 48V and 60V for power supply lines and 5V to 8V for network lines, suitable for standard PoE devices.
How does the G20POE ensure high transmission performance?
It offers minimal insertion loss (around 0.2dB) and supports gigabit transmission rates up to 1000 Mbps, maintaining high-quality signal transmission during surge events.
What environmental conditions can the G20POE operate in?
The surge protector is designed to operate reliably in a wide temperature range from -40°C to 85°C with CCB and RoHS certifications for environmental safety.
