Product Features

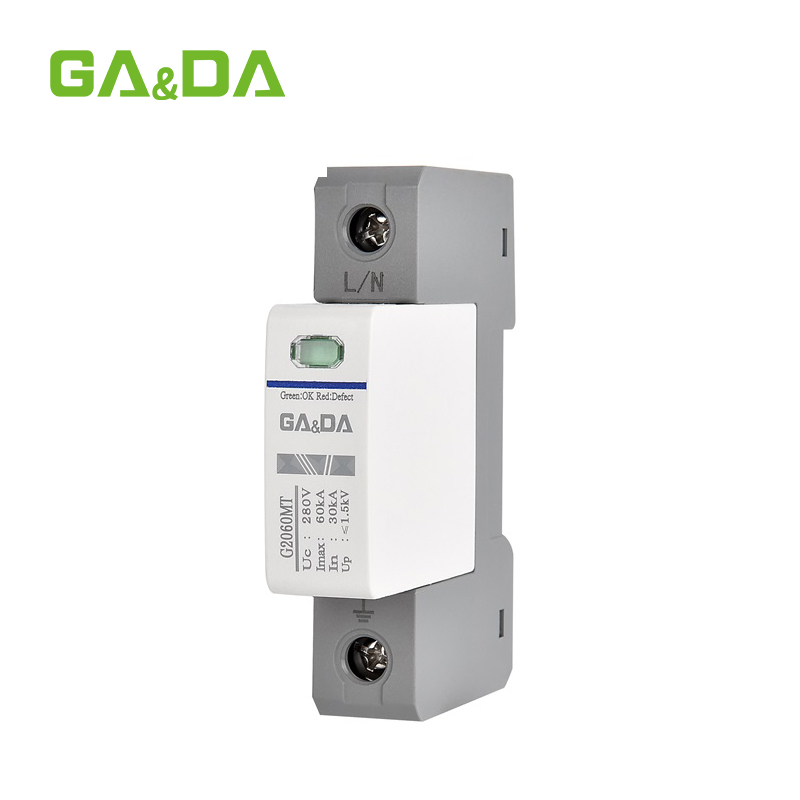

The G2060MT Type 2 surge protective device offers superior overvoltage protection for electrical and automation systems. It features a modular DIN rail structure for quick installation and easy maintenance. Built with high-energy MOV components, it ensures fast response and stable performance under transient voltage conditions. The indicator window allows for real-time monitoring, enhancing system safety and reliability in demanding environments.
Technical Parameters
Rated voltage: 230/400V AC; Nominal discharge current (In): 20kA; Maximum discharge current (Imax): 40kA; Voltage protection level (Up): ≤1.5kV. Installation: 35mm DIN rail mount. Material: high-strength flame-retardant thermoplastic. Operating temperature: -40°C to +80°C. Compliance: IEC 61643-11 and EN 61643-11 standards. Compact dimensions suitable for control panels and low-voltage distribution boxes.
| Parameter | Specification |
|---|---|
| Product Series | G2060MT |
| Type | Type 2 Surge Protective Device |
| Test Standard | EN/IEC 61643-11 (Type 2 / Class 2 / T2 / Class C) |
| Max Continuous Operating Voltage (Uc) AC | 275V, 320V, 385V, 420V, 440V, 600V, NPE 255V |
| Nominal Discharge Current (In) | 20kA |
| Max Discharge Current (Imax) | 40kA |
| Voltage Protection Level (Up) | ≤ 1.4kV |
| Response Time (ta) | ≤ 25ns |
| Operating Temperature Range | -40°C to +85°C |
| Degree of Protection | IP20 |
| Installation | 35mm DIN rail |
| Housing Material | Thermoplastic UL94-V0 |
| Approvals / Certifications | IEC, GB/T, RoHS |
Application
The G2060MT series SPD is ideal for surge protection in electrical panels, automation systems, and industrial control cabinets. It safeguards medium-voltage distribution systems in commercial buildings, data centers, telecommunications equipment, and renewable energy projects. Designed to minimize downtime and protect critical components from transient voltage surges.
Why Choose Us
We are a professional SPD manufacturer with extensive experience in global export and OEM customization. Our products comply with international standards, ensuring high reliability and durability. We offer competitive pricing, fast delivery, and dedicated technical support. Choose us for consistent product quality and tailored surge protection solutions for your business needs.
FAQ
What is the maximum continuous operating voltage of the G2060MT surge protector?
The maximum continuous operating voltage is available for different models, ranging from 150V up to 600V AC, with a nominal discharge current of 30kA (8/20 µs) and maximum discharge current of 60kA [8/20 µs]
How does the G2060MT device indicate its operating status?
The device uses a color-coded indication system: green light shows normal operation and red light indicates fault or invalid state.
Can the G2060MT surge protective device be replaced without shutting down the system?
Yes, the device features innovative tripping and breaking technology with contacts on both sides allowing it to be easily plugged and unplugged without interrupting system operation.
What standards does the G2060MT comply with?
The device complies with EN 61643-11 and IEC 61643-11 standards for surge protective devices.
What is the typical response time of the G2060MT surge protector?
The response time is very fast, typically about 25 nanoseconds, providing effective protection against surges.
