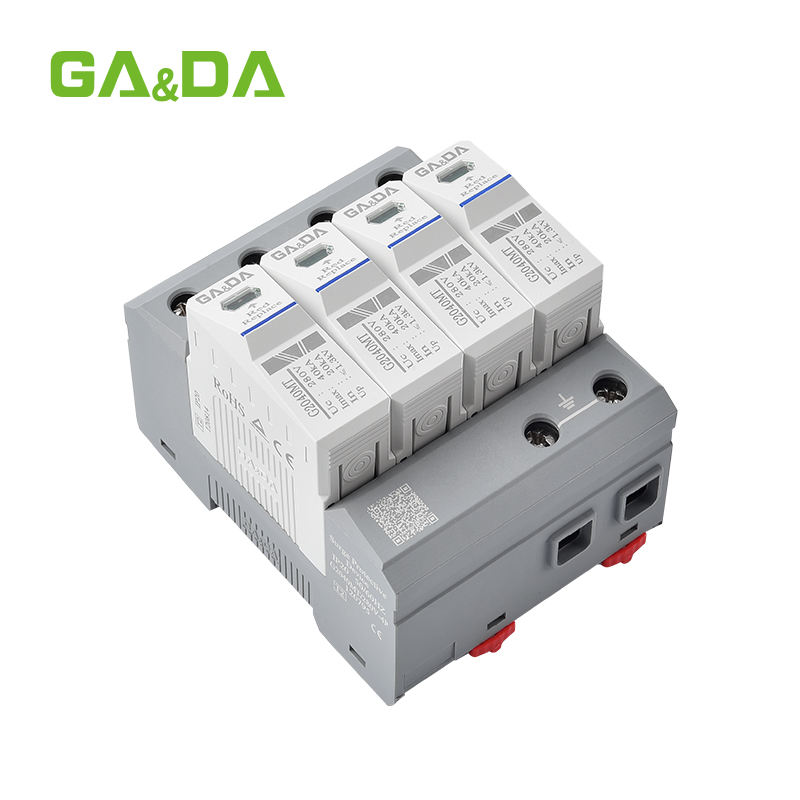

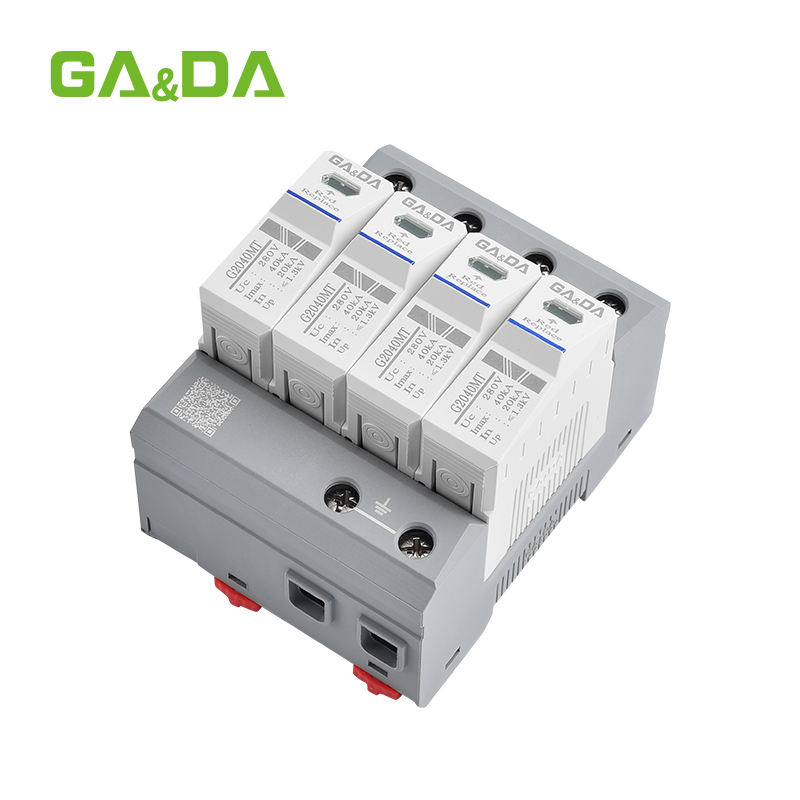

The G2040MT-280-4P is a four-pole Type 2 surge protective device manufactured with premium flame-retardant materials in Zhejiang, China. With a maximum discharge current (Imax) of 40kA and a nominal discharge current (In) of 20kA, this SPD offers excellent performance for medium-level surge protection.
Certified by CB, CE, and TUV, it meets international safety and reliability standards, making it suitable for residential, commercial, and industrial installations worldwide. The device is compact, easy to install on a 35mm DIN rail, and features a built-in indicator for real-time operational status.
Key Features of G2040MT-280-4P
- Type 2 SPD (Class II) – designed for protection against indirect lightning and switching surges.
- Surge capacity – Imax 40kA, In 20kA per pole, ensuring strong protection.
- Four-pole design – suitable for three-phase power distribution systems.
- Flame-retardant housing – provides enhanced safety and durability.
- DIN rail mountable – quick installation inside distribution panels.
- Status indicator window – allows for simple monitoring and maintenance.
- Certified quality – CE, CB, and TUV certifications guarantee compliance.
| Parameter | Specification |
|---|---|
| Product Series | G2040MT |
| Type | Type 2 Surge Protective Device |
| Poles | 2P, 4P, 1+NPE configurations |
| Rated Voltage (Un) | 220-280 VAC |
| Max Continuous Operating Voltage (Uc) | 280 VAC |
| Nominal Discharge Current (In) | 40kA |
| Max Discharge Current (Imax) | 60kA |
| Voltage Protection Level (Up) | Around 1.3kV |
| Response Time (ta) | ≤ 25ns |
| Operating Temperature Range | -40°C to +80°C |
| Degree of Protection | IP20 |
| Installation | 35mm DIN rail |
| Feature Highlights | Innovative tripping and breaking technology, plug-in design, fault indicator, easy replacement without system interruption |
Advantages of Using Type 2 SPDs
- Protects sensitive equipment – ensures electronics and machines remain safe from power surges.
- Reduces downtime – prevents costly repairs and system failures.
- Versatile application – suitable for buildings, industrial facilities, and electronic equipment.
- Modular replacement – easy maintenance with minimal downtime.
- Global acceptance – trusted solution with international certifications.
- Durability – flame-retardant enclosure improves fire resistance and safety
Typical Applications
The G2040MT-280-4P is widely applied in:
- Building electrical systems – safeguarding lighting, HVAC, elevators, and household appliances.
- Industrial equipment – CNC machines, automation panels, and control systems.
- Electronic equipment – servers, data centers, and communication networks.
- Renewable energy systems – solar inverters, wind power, and distributed energy setups.
- Commercial facilities – offices, retail stores, and critical infrastructure.
With its 20kA/40kA surge handling capacity, this SPD is a dependable choice for engineers, contractors, and industrial buyers seeking medium-level surge protection.
Installation & Maintenance Instructions
- Install the device on a standard 35mm DIN rail inside the distribution cabinet.
- Connect the SPD in parallel to the incoming power lines (L, N, and PE).
- Ensure proper grounding for effective surge diversion.

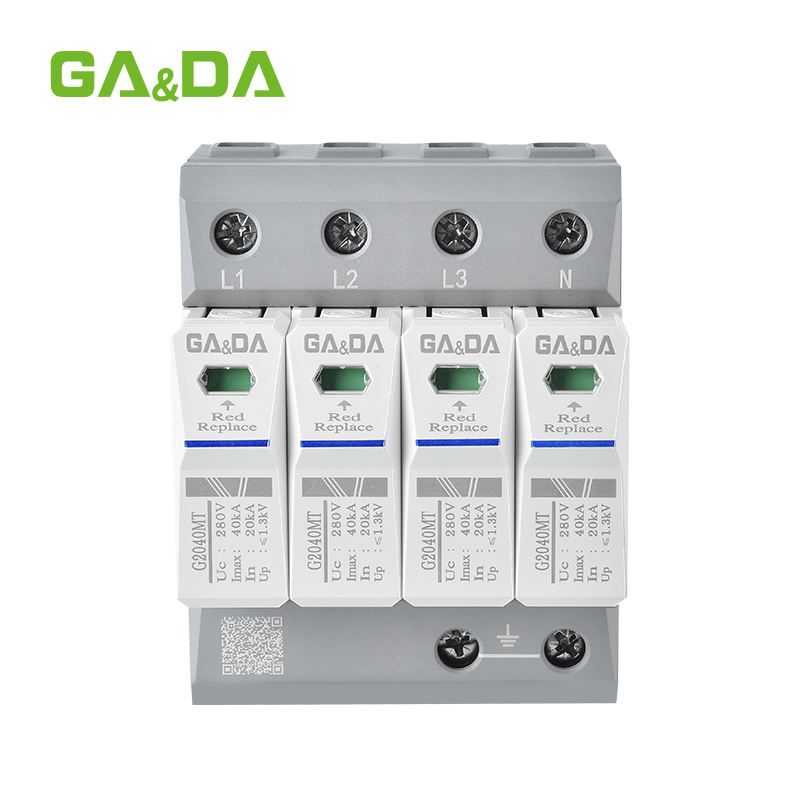

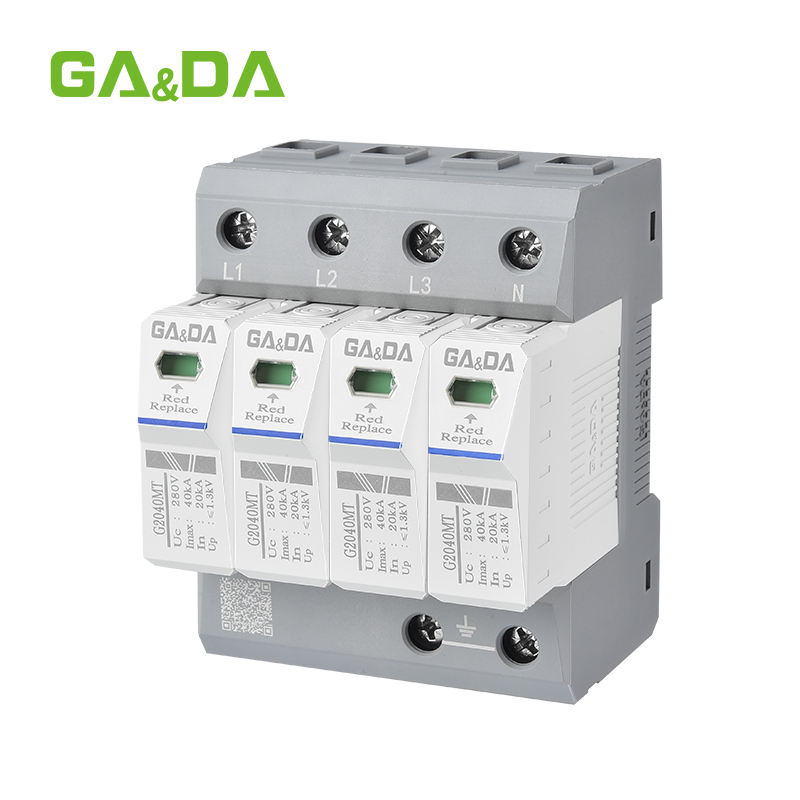

- Check the status indicator window regularly – green indicates normal operation, while red signals replacement.
- Replace modules promptly if the indicator shows end-of-life or after severe surge events.
The modular cartridge design makes replacement straightforward, reducing maintenance time and cost.
How to Select the Right Surge Protective Device
When choosing a surge protective device, consider:
- Type – Type 1 for direct lightning, Type 2 for general protection, and Type 3 for terminal devices.
- Surge capacity (Imax & In) – match the protection level to your environment (20kA/40kA for medium-level, higher for industrial-heavy zones).
- Number of poles – select 2P, 3P, or 4P depending on system configuration.
- Standards & certification – ensure compliance with IEC 61643-11 and EN standards.
- Safety materials – flame-retardant housing for improved fire resistance.
- Brand reliability – choose manufacturers with proven expertise in surge protection.
The G2040MT-280-4P meets these requirements, making it a trusted Type 2 SPD for three-phase distribution networks.
FAQ – Type 2 Surge Protective Devices
Q1: What does a Type 2 SPD protect against?
A: It protects against indirect lightning strikes and switching surges in medium-voltage environments.
Q2: Is this device suitable for solar PV systems?
A: Yes, the G2040MT-280-4P can be used in solar and renewable energy applications with proper configuration.
Q3: How many poles does this SPD have?
A: It is a four-pole surge protective device, ideal for three-phase systems.
Q4: What is the difference between In and Imax?
A: In (20kA) is the nominal discharge current, while Imax (40kA) is the maximum discharge current the device can handle.
Q5: How often should it be replaced?
A: Inspect regularly; replace if the indicator shows failure or after a significant surge event.
FAQ
What is the nominal discharge current of the G2040MT surge protective device?
The nominal discharge current is 20kA (8/20 µs).
What voltage ratings does G2040MT support for continuous operation?
It supports continuous operating voltages from 150V up to 600V AC, with NPE rated at 255V AC.
How does the G2040MT indicate its operational status?
It uses color indicators where green means normal operation and red means fault or invalid status.
Can the G2040MT be replaced without shutting down the system?
Yes, it can be easily plugged and unplugged without interrupting system operation due to its design.
What standards does the G2040MT comply with?
The device complies with EN 61643-11 and IEC 61643-11 standards for surge protective devices.
