Product Features

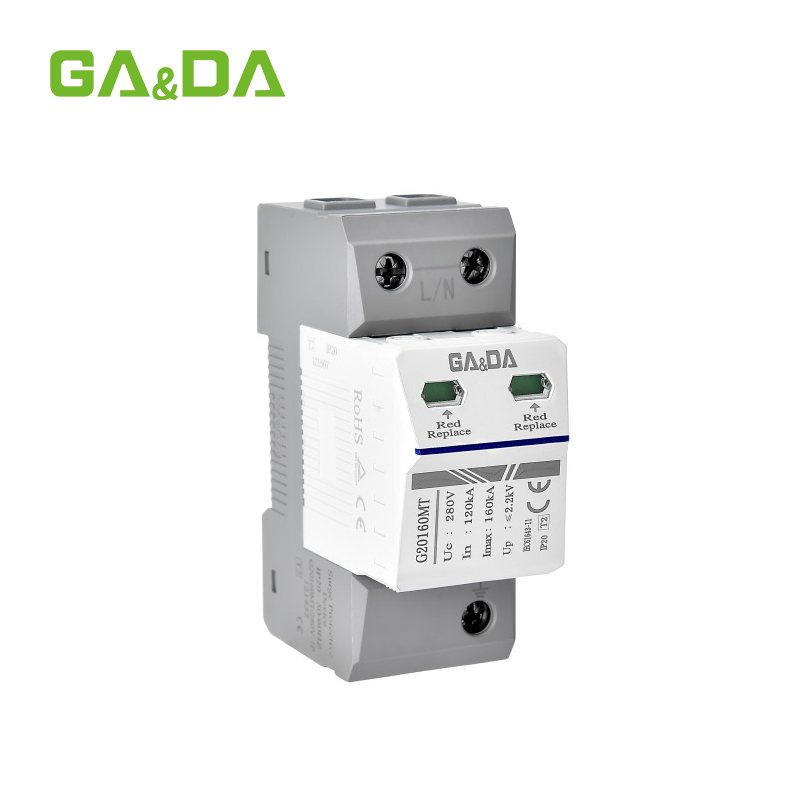

The G20160MT series SPD is a compact and durable Type 2 surge protective device designed for medium-voltage electrical distribution systems. It features high discharge capacity, thermal protection, and modular plug-in construction for quick maintenance. Its DIN rail installation design ensures easy integration into existing panels, providing efficient and long-lasting lightning and surge suppression.
Technical Parameters
Rated operating voltage: 230/400V AC; nominal discharge current (In): 20kA; maximum discharge current (Imax): 40kA; protection level (Up): ≤1.5kV. The module is equipped with thermal disconnectors and visual fault indicators. Installation is compatible with 35mm DIN rail systems for compact control panels.
| Parameter | Specification |
|---|---|
| Product Series | G20160MT |
| Type | Type 2 Surge Protective Device |
| Test Standard | EN/IEC 61643-11 (Type 2 / Class 2 / T2 / Class C) |
| Max Continuous Operating Voltage (Uc) AC | 150V, 280V, 320V, 385V, 440V, 600V, NPE 255V |
| Nominal Discharge Current (In) | 120kA |
| Max Discharge Current (Imax) | 160kA |
| Total Lighting Current (Itotal) | 480kA (L1/N to PE) |
| Voltage Protection Level (Up) | ≤1.8kV to ≤4.0kV (depending on voltage rating) |
| Response Time (ta) | < 25ns |
| Degree of Protection | IP20 |
| Operating Temperature Range | -40ºC to +80ºC |
| Fault Indication | Green (Normal), Red (Invalid) |
| Approvals / Certifications | TUV, CB, CE, IEC, RoHS |
| Available Poles | 1P, 2P, 3P, 4P, 1+NPE, 3+NPE |
Application
The G20160MT Type 2 surge protective device is ideal for power distribution systems, control cabinets, industrial automation equipment, and commercial electrical networks. It effectively protects sensitive electrical devices from transient voltage surges caused by lightning or switching operations.
Why Choose Us
We specialize in manufacturing SPDs with certified quality, fast delivery, and OEM customization options. With extensive export experience and strict quality assurance, our products meet international safety standards, ensuring reliable performance and long service life for your projects.
FAQ
What is the nominal discharge current for the G20160MT series?
The nominal discharge current is 20kA per pole, providing robust protection against transient surges.
What is the maximum discharge current supported?
The maximum discharge current ranges from 40kA to 120kA depending on the number of poles (1P to 4P).
What is the maximum continuous operating voltage?
It supports continuous operating voltages from 150V to 600V AC, suitable for various power system voltage levels.
What is the voltage protection level (Up)?
The voltage protection level varies between 1.0kV and 2.5kV, depending on specific model configurations
What is the response time of these devices?
The devices feature a fast response time of 25 nanoseconds, ensuring quick suppression of electrical surges.
