Product Features

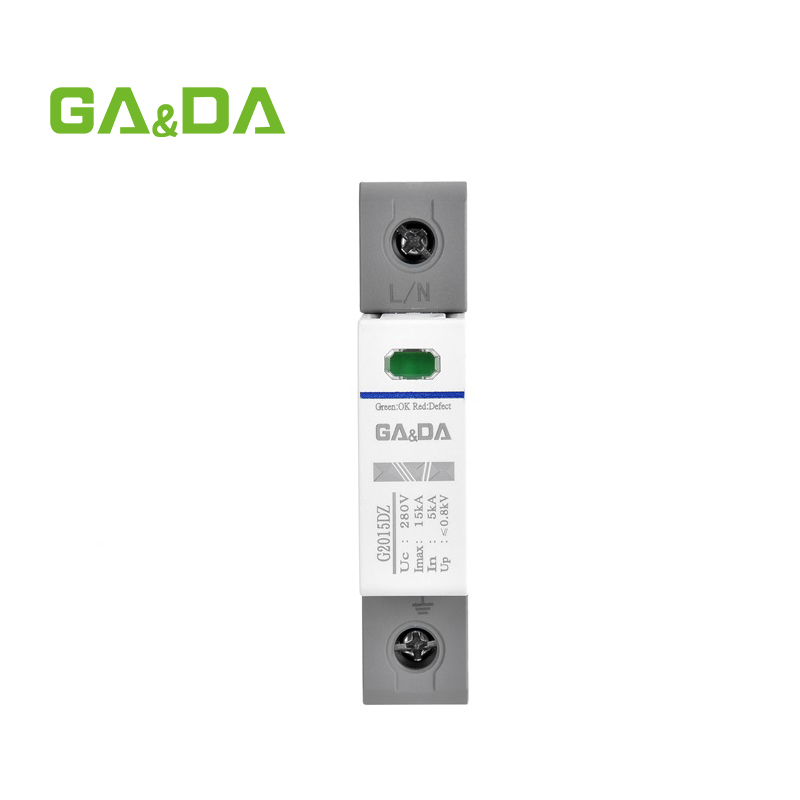

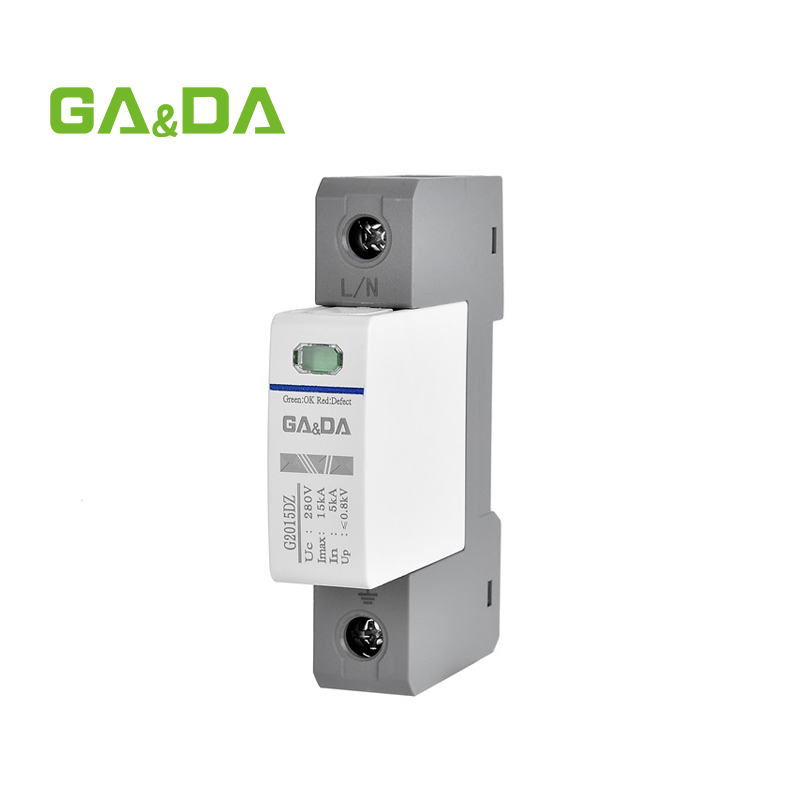

The G2015DZ series SPD is a high-performance DIN rail Type 2 surge protector designed to ensure effective electrical distribution surge protection. It uses advanced metal oxide varistor (MOV) technology to provide reliable response to voltage surges. The housing is made from high-strength flame-retardant PC, and features include a visual fault indicator, modular design, and easy maintenance for long-term stability and safety.
Technical Parameters
- Model: G2015DZ Type 2 SPD
- Rated Voltage (Un): 230/400V AC
- Maximum Continuous Operating Voltage (Uc): 385V AC
- Nominal Discharge Current (In): 15kA
- Maximum Discharge Current (Imax): 30kA
- Voltage Protection Level (Up): ≤1.5kV
- Response Time: ≤25ns
- Mounting: 35mm DIN rail
- Material: Flame-retardant PC
- Status Display: Visual indicator, optional remote signaling contact
| Parameter | Specification |
|---|---|
| Product Series | G2015DZ |
| Type | Type 2 Surge Protective Device |
| Max Continuous Operating Voltage (Uc) | 280 V AC |
| Nominal Discharge Current (In) | 5 kA |
| Max Discharge Current (Imax) | 15 kA |
| Voltage Protection Level (Up) | ≤ 0.7 kV |
| Response Time (ta) | ≤ 25 nanoseconds |
| Operating Temperature Range | -40ºC to +80ºC |
| Degree of Protection | IP20 |
| Installation | 35 mm DIN rail |
| Features | Modular pluggable design, fault indicator (green/red), optional remote signaling |
| Certifications / Approvals | CE, RoHS, IEC 61643-11 |
Application
The G2015DZ Type 2 surge protective device is suitable for low and medium-voltage electrical systems, including industrial control cabinets, residential switchboards, building automation, and telecommunications. It offers reliable surge protection for equipment connected to the main power distribution line.
Why Choose Us
As a professional SPD manufacturer and supplier, we offer high-quality surge protection products certified to IEC 61643-11 standards. We provide fast delivery, OEM/ODM customization, and comprehensive export experience. With competitive pricing and reliable after-sales service, we ensure long-term partnerships with global clients.
FAQ
What is the nominal discharge current of the G2015DZ surge protector?
The nominal discharge current is 5kA (8/20 µs).
What is the maximum continuous operating voltage of the G2015DZ?
It supports 150V to 600V AC with NPE rated at 255V.
How does the G2015DZ indicate the operating state?
It features green light for normal operation and red light for fault or invalid status.
Can the G2015DZ be replaced without interrupting the system operation?
Yes, due to its innovative design, it can be plugged and unplugged easily without system shutdown.
What standards does the G2015DZ meet?
It complies with EN 61643-11 and IEC 61643-11 standards.
