Product Features

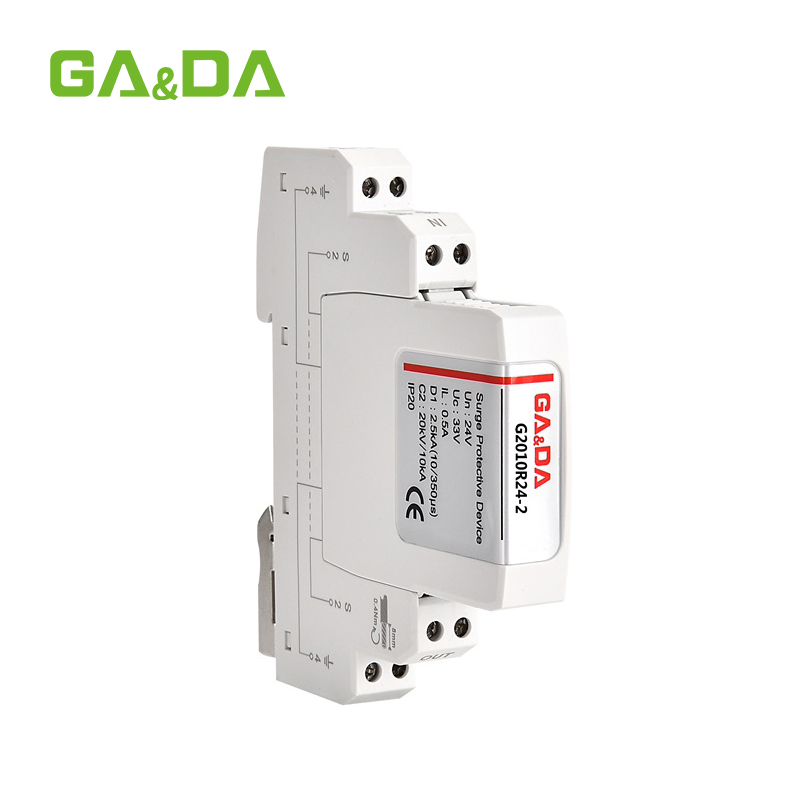

The G2010R Series Surge Protector is designed for multi-voltage control signal protection, including 24V, 48V, 110V, and 220V systems. It adopts advanced semiconductor components for rapid response to transient surges, effectively protecting precision instruments and PLC systems. The compact modular design supports DIN rail installation, offering high reliability, easy maintenance, and consistent performance in harsh industrial environments.
Technical Parameters
Rated Voltage: 24V / 48V / 110V / 220V
Nominal Discharge Current: 5kA (8/20μs)
Maximum Discharge Current: 10kA (8/20μs)
Response Time: <1ns
Transmission Rate: ≤10Mbps
Connection Mode: Screw Terminal / Pluggable Interface
Installation: 35mm DIN Rail
Operating Temperature: -40°C to +85°C
| Parameter | Specification |
|---|---|
| Product Series | G2010R24/48/110/220 Series |
| Application | Control Signal Line Surge Protection |
| Rated Working Voltage (Un) | 5V / 24V / 48V / 110V / 220V |
| Maximum Continuous Voltage (Uc) | 6V / 36V / 56V / 110V / 220V |
| Nominal Discharge Current (In) | 5kA |
| Maximum Discharge Current (Imax) | 10kA |
| Voltage Protection Level (Up) | 1.0kV / 1.2kV / 1.5kV |
| Response Time | < 1 nanosecond |
| Wiring | Pluggable Terminal Wire |
| Operating Temperature Range | -40°C to +80°C |
| Protection Level | IEC IP20 |
| Installation Method | Board Mount |
| Certification | CE, RoHS, CQC |
Application
Ideal for industrial control systems, PLCs, DCS control rooms, signal transmission networks, and communication interfaces. The device is widely used in factory automation, energy systems, and instrumentation control to ensure reliable signal integrity and long-term protection against surges and lightning strikes.
Why Choose Us
We specialize in high-performance surge protection devices with strict quality control, ISO-certified production, and professional OEM/ODM customization. Our experienced engineering team ensures fast delivery, technical support, and tailored surge solutions for industrial and automation projects worldwide.
FAQ
What voltage levels are covered by the G2010R24/48/110/220 series?
The series accommodates 24V, 48V, 110V, and 220V control signal lines, offering versatile protection across common signal voltages.
How fast is the response time of the G2010RXX series surge protectors?
These protectors feature ultra-fast response times, typically within 10 nanoseconds, to quickly clamp transient surges.
What type of mounting does the G2010RXX series support?

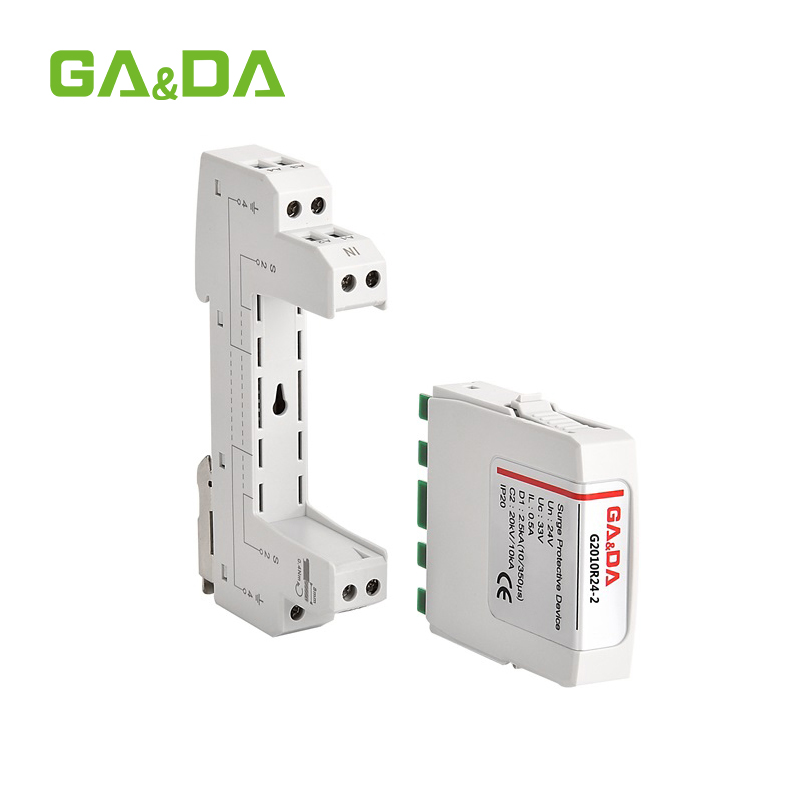

They are board-mounted devices designed for easy integration into existing control panels, with modular pluggable designs for quick replacement.
Does the series include temperature compensation?
Yes, it incorporates temperature compensation to maintain stable performance under varying environmental conditions.
What certifications do these devices have?
They comply with CCB and RoHS standards, ensuring safety and environmental compliance.
