Product Features

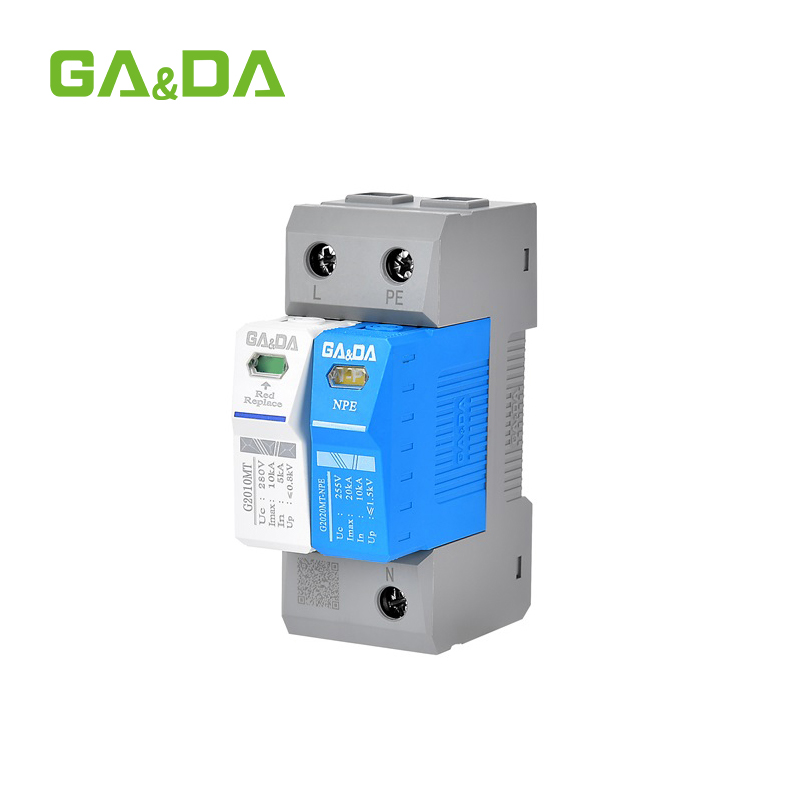

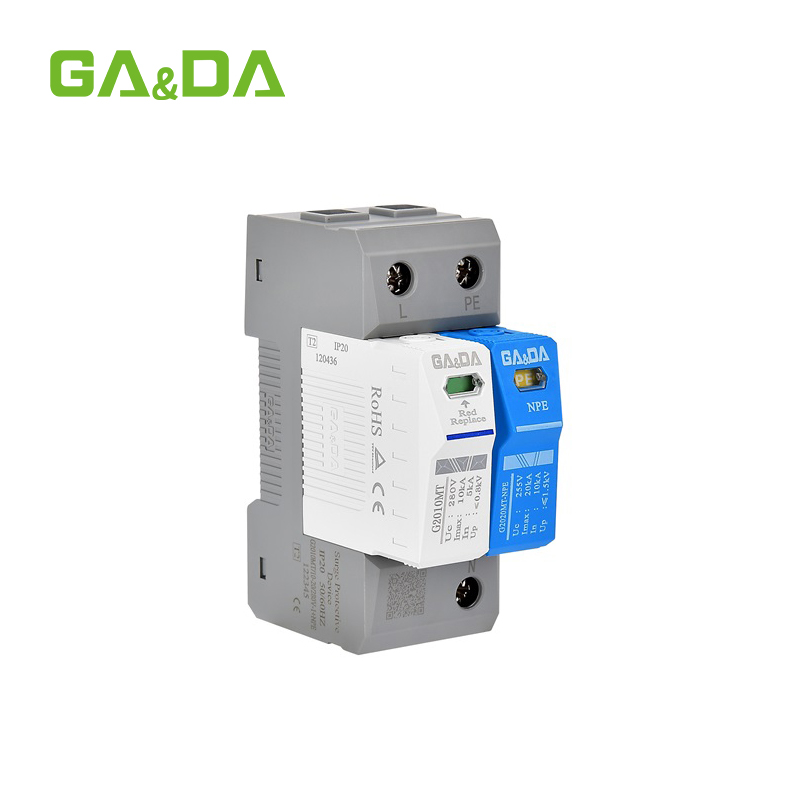

The G2010MT Series Type 2 Surge Protective Device delivers high performance and stability in low and medium-voltage systems. Built with advanced MOV components and thermal disconnectors, it provides fast response and superior surge discharge capacity. Its compact modular design supports quick replacement, while the visual indicator allows for real-time status monitoring. The housing is flame-retardant, ensuring safe operation under harsh electrical environments.
Technical Parameters
- Rated Voltage (Un): 230/400V AC
- Maximum Continuous Operating Voltage (Uc): 275V AC
- Nominal Discharge Current (In): 10kA (8/20μs)
- Maximum Discharge Current (Imax): 20kA (8/20μs)
- Voltage Protection Level (Up): ≤1.5kV
- Response Time: ≤25ns
- Connection Mode: L-N, N-PE
- Installation: 35mm DIN rail mounting
- Material: Flame-retardant thermoplastic housing
- Compliance: IEC/EN 61643-11 standards
| Parameter | Specification |
|---|---|
| Product Series | G2010MT/10-20 Type 2 |
| Technology | Innovative tripping and breaking technology |
| Max Continuous Operating Voltage (Uc) | 150V, 280V, 320V, 385V, 440V, 600V |
| Nominal Discharge Current (In) | 5kA |
| Max Discharge Current (Imax) | 10kA |
| Voltage Protection Level (Up) | 0.7kV (150V), 0.8kV (280V), 1.0kV (320V), 1.2kV (385V), 1.6kV (440V), 2.0kV (600V) |
| Response Time | 25ns |
| Operating Temperature Range | -40°C to 80°C |
| Installation | 35mm DIN rail according to EN 60715 |
| Degree of Protection | IP20 |
| Certifications | CE, RoHS, CQC |

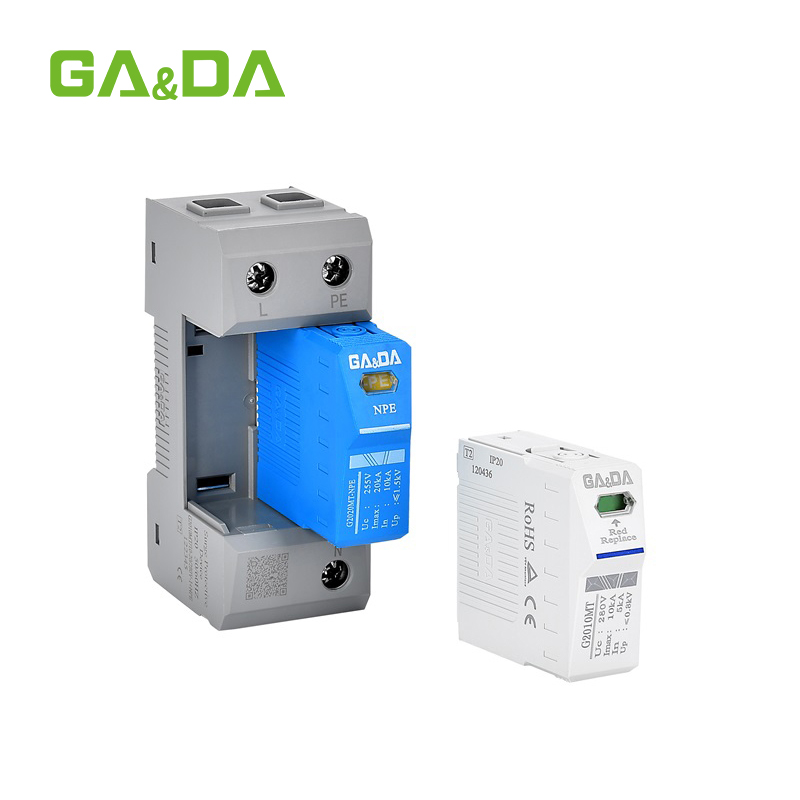

| Mounting Type | Can be easily plugged and unplugged, replaceable without system interruption |
| Dimensions | 94mm length, 72mm, 46mm (varies by model) |
| Weight | Varies 90g to 360g depending on model count |
Application
This Type 2 SPD is ideal for residential, commercial, and industrial electrical distribution systems, offering effective protection against voltage surges caused by lightning or switching operations. It is widely used in power distribution boards, control cabinets, automation equipment, communication systems, and renewable energy installations to ensure operational reliability and extend equipment lifespan.
Why Choose Us
We are a trusted manufacturer and supplier of surge protective devices with over 10 years of export experience. Our products are certified, tested, and designed for global electrical standards. We provide fast delivery, OEM/ODM customization, and technical support to meet diverse project requirements. Every unit undergoes strict quality inspection to guarantee long-lasting performance and customer satisfaction.
FAQ
What are the main features of the G2010RXX series?
The series features innovative tripping and breaking technology, allowing the module to be easily plugged and unplugged without interrupting system operation, making maintenance convenient.
What are the supported voltage levels?
The series supports various control signal voltages, including 24V, 48V, 110V, and 220V AC, with corresponding maximum continuous working voltages.
What is the response time of these surge protectors?
The typical response time is very fast, approximately 25 nanoseconds, ensuring effective protection against transient surges.
How is the device protected in harsh environments?
It features temperature compensation and is designed according to EN 61643-11 IEC standards, suitable for indoor environments with a wide operating temperature range.
What certifications does the series hold?
The series complies with CE, RoHS, and CQC standards, providing assurance of safety and environmental friendliness.
