Product Features

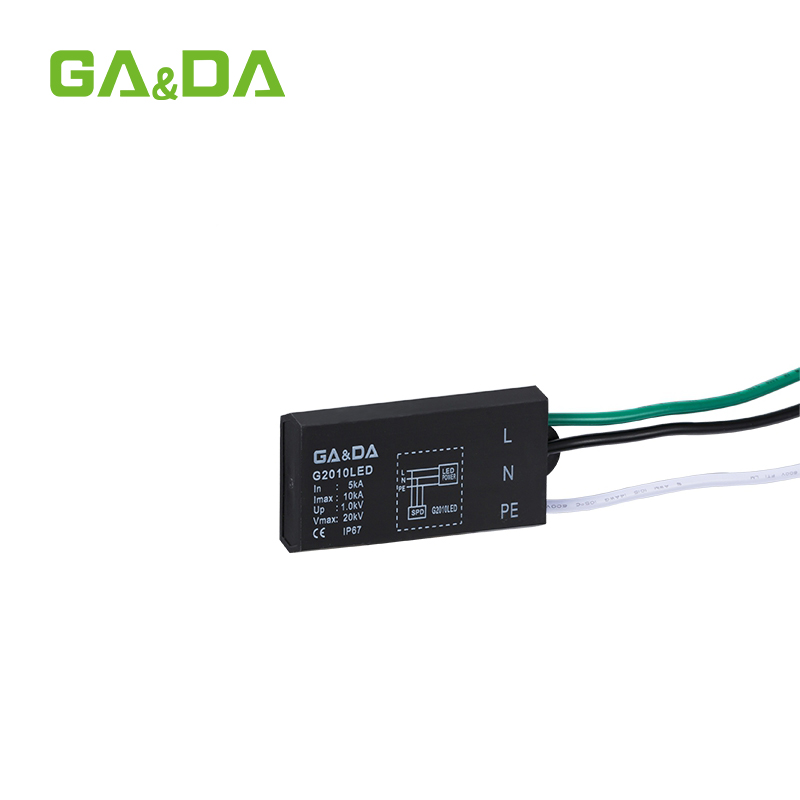

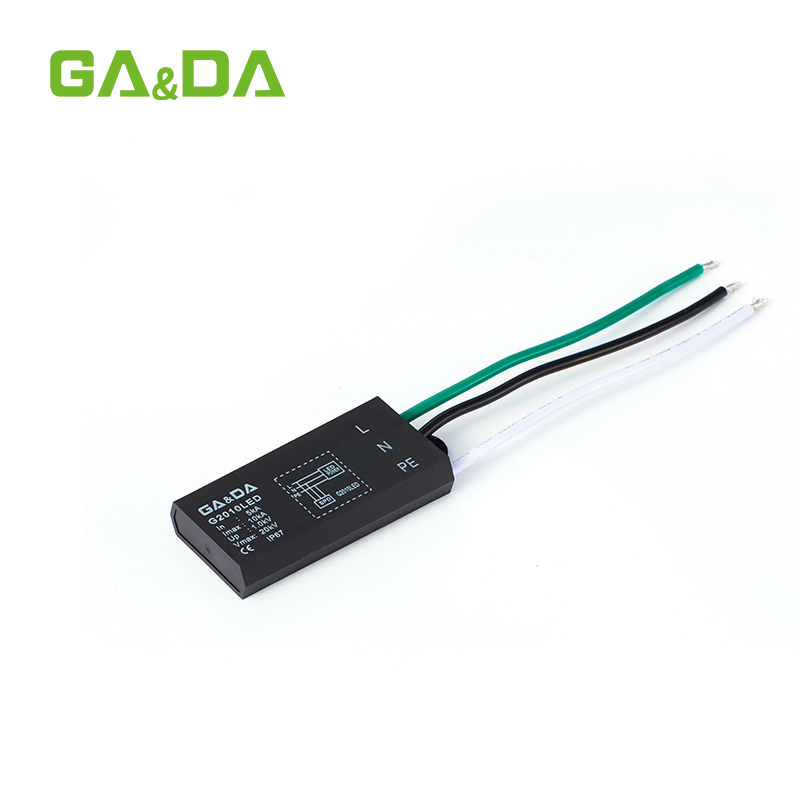

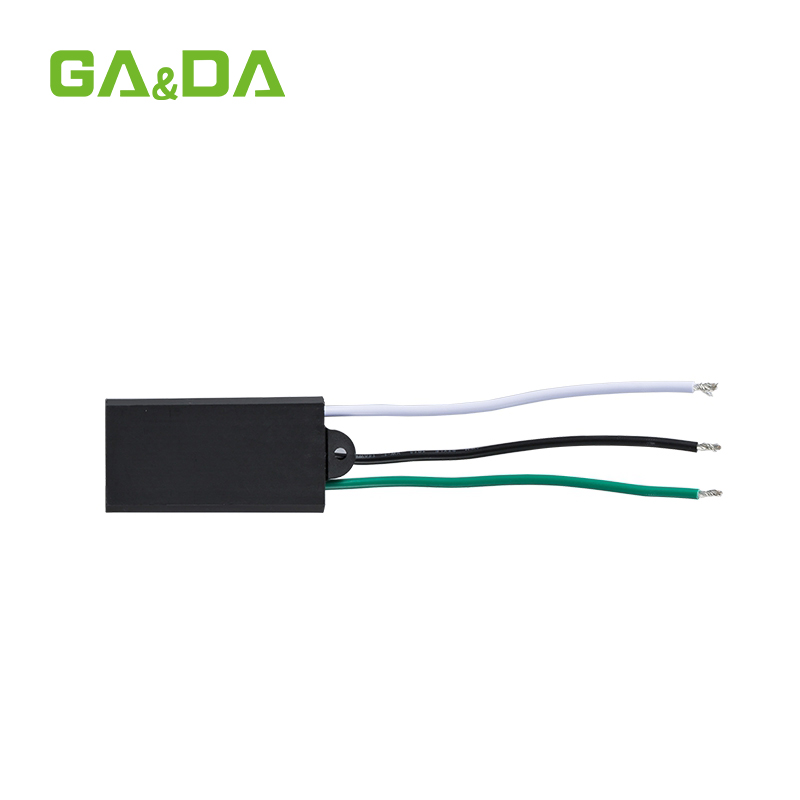

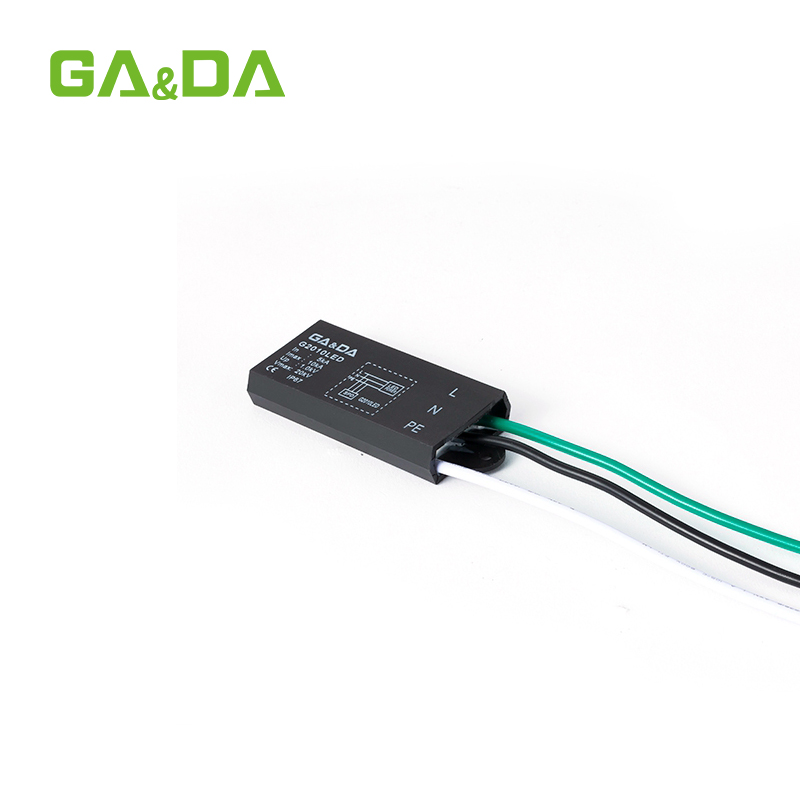

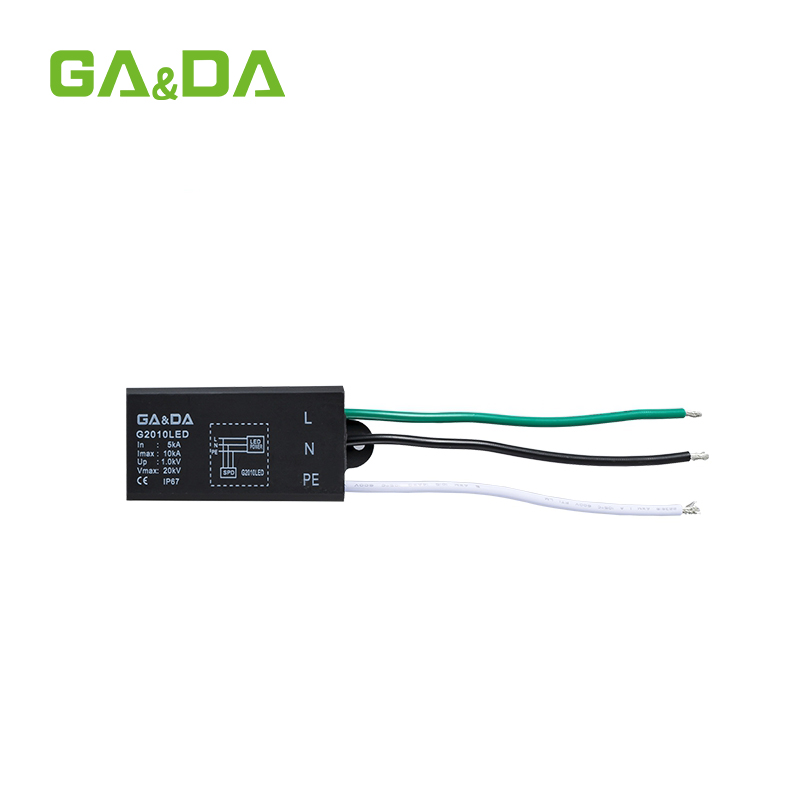

The G2010LED Series Outdoor Lighting Surge Protector provides advanced protection for outdoor LED and solar lighting systems. Built with high-energy MOV components and flame-retardant housing, it effectively suppresses transient overvoltage. Its IP67 waterproof design ensures reliable performance in extreme outdoor conditions, preventing damage from lightning surges and extending lighting system lifespan.
Technical Parameters
- Rated Voltage: 220V / 277V AC
- Maximum Discharge Current: 20kA–40kA
- Protection Level: Up to 10kV
- Waterproof Rating: IP67
- Housing Material: UV-resistant polycarbonate
- Connection Type: Parallel or series wiring
- Operating Temperature: -40°C to +85°C
| Parameter | Specification |
|---|---|
| Product Series | G2010LED Series |
| Application | Outdoor Lighting Systems |
| Protection Level | IP65 |
| Design Features | Compact size, suitable for lamp internal installation |
| Standards | IEC 61643-1, EN 61643-11 |
| Rated Operating Voltage (Uc) | 120-230V |
| Maximum Continuous Voltage | 6V, 36V, 56V (depending on model) |
| Nominal Discharge Current | 5kA |
| Maximum Discharge Current | 10kA |
| Voltage Protection Level (Up) | Approx. 1kV |
| Response Time | 1 nanosecond (ns) |
| Line Impedance | Approx. 10 ohms |
| Dimension (L×W×H) | 63×32.5×12.8 mm |
| Insulation Material | UL94 PA66V0 flame retardant |
Application
Ideal for outdoor LED street lighting, tunnel lighting, solar-powered lighting, and garden or landscape illumination systems. The DC surge protector for solar lighting ensures stable operation even in areas prone to lightning or power fluctuations, safeguarding expensive electronic lighting equipment.
Why Choose Us
As a professional lighting surge protection supplier, we provide reliable quality, competitive pricing, and OEM/ODM support. Our production follows strict international standards with fast delivery times and professional export experience to more than 30 countries. We guarantee stable supply and customized solutions for your outdoor lighting projects.
FAQ
What standards does the G2010LED surge protector comply with?
The G2010LED outdoor lighting surge protector complies with IEC 61643-1 and EN 61643-11 standards to ensure safety and reliability.
What is the maximum discharge current rating of the G2010LED device?
The device has a maximum discharge current rating of 10kA, with an impulse current rating up to 20kA, providing effective protection against lightning surges.
What is the typical voltage protection level (Up) of this surge protector?
The voltage protection level (Up) is typically 1.0kV, providing robust safeguard to connected LED outdoor lighting systems.
How does the G2010LED ensure environmental durability?
It is designed to meet IP65 requirements, providing excellent protection against dust and water ingress for outdoor use.
What installation methods are recommended for the G2010LED series?
The device is board-mounted with LED indication, supporting both two-wire and four-wire system configurations for flexible installation.
